Blueprint SeaTrac USBL Positioning System | Deep Trekker
The SeaTrac Ultra Short Baseline Locating system allows you to gain awareness of the relative position of your ROV, as well as set waypoints along your dive. Understanding where your ROV is located, and where you have already searched or investigated, can be challenging. Without the ability to utilized GPS underwater, ROVs rely on the use of sound technology for navigation and locating.
![Absolute GPS Positioning icon]()
Track ROV position underwater
![Controler icon]()
On-screen integration
![Advanced sonar integration icon]()
1 km range
Bridge integrated Blueprint Subsea SeaTrac Ultra Short Base Line (USBL) Positioning System for tracking ROVs

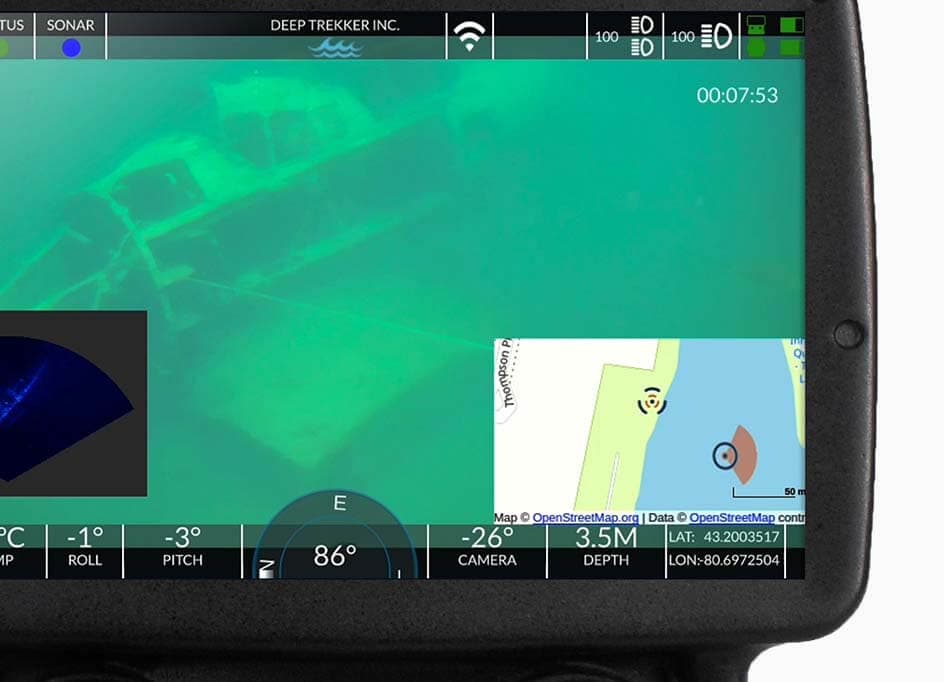

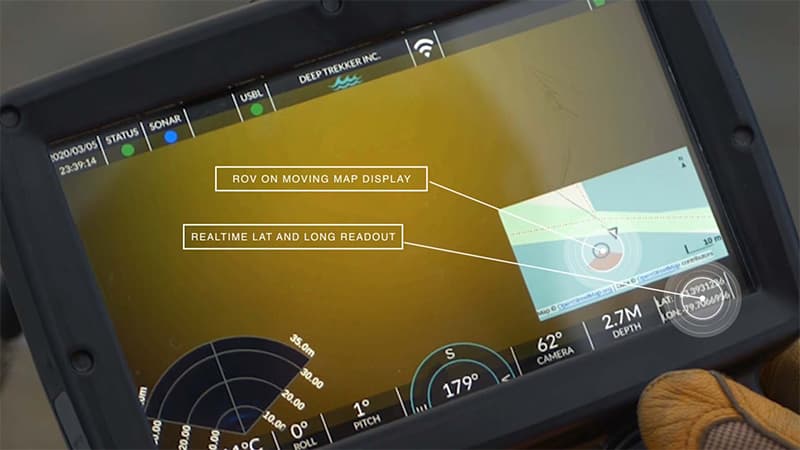

Using a dunking transducer at the surface and a transponder mounted to the top of the ROV, the two communicate using acoustics. The relative position of the ROV to the dunking transducer is calculated and then through Bridge software is displayed on a Google Map on your controller. Allowing you to visualize your position during your dive, plot points of interest.
In open water applications where you want to know exactly where you are and where you are going, you use this positioning system to track your ROV. Our Ocean Science customers use this to track where they saw certain features and log data over the span of their dive. Inspection companies inspecting critical infrastructure use the USBL to log where they find defects and anomalies during an inspection.

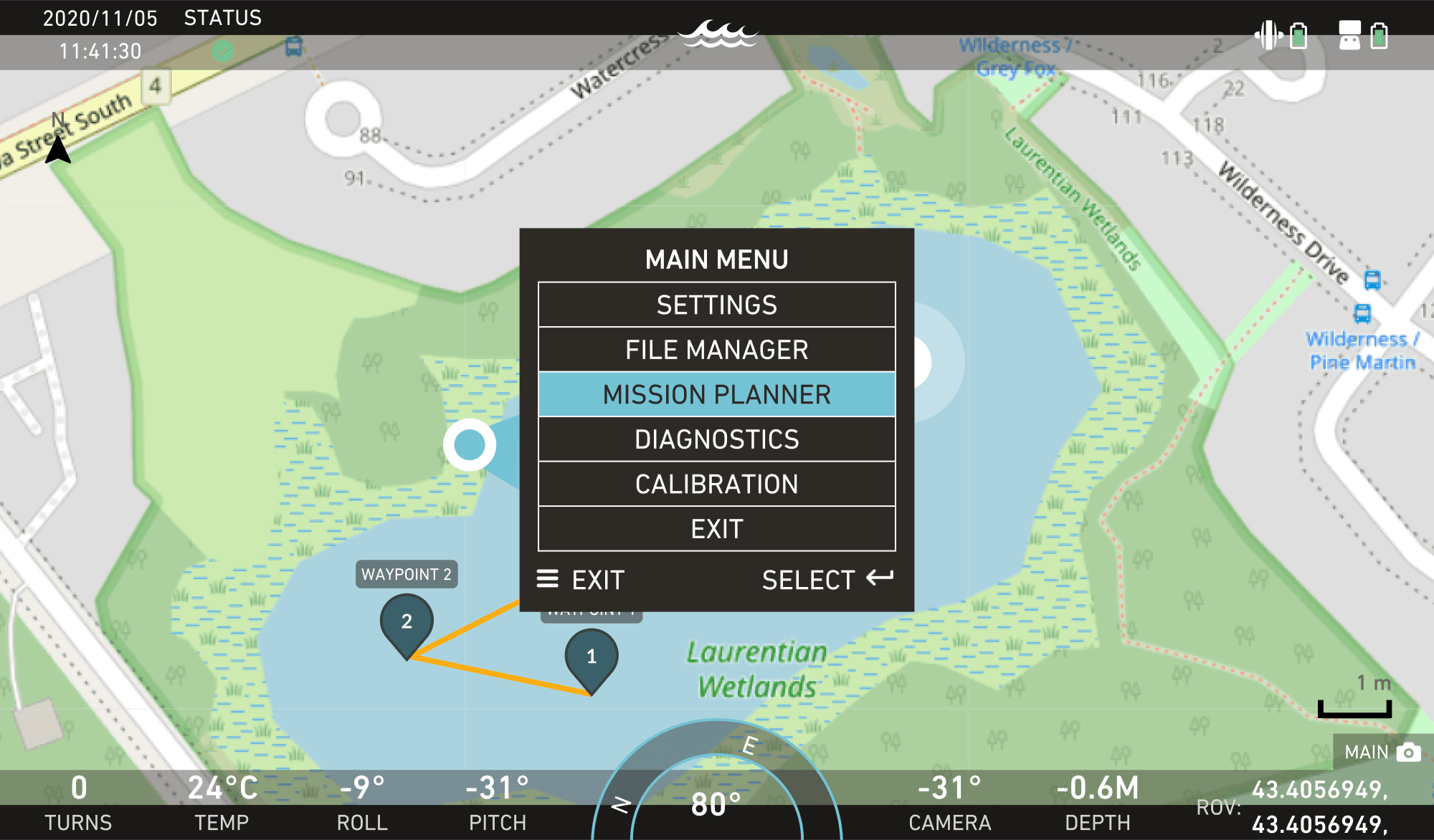

Mission planning

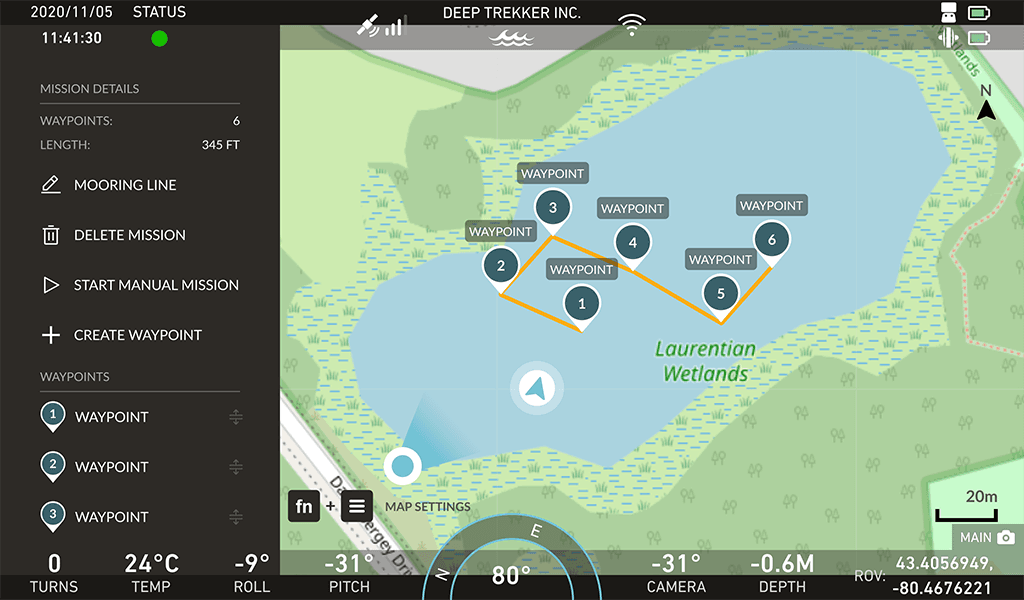

With Deep Trekker's Mission Planner you can create waypoints at pre-defined locations or import a spreadsheet and have these coordinates or geo locations displayed on the map at all times.
Mission planning can also help you keep track of locations you want to return to. Simply create a waypoint or drop one using the program button while piloting to get added to the mission file.
X150 USBL Beacon

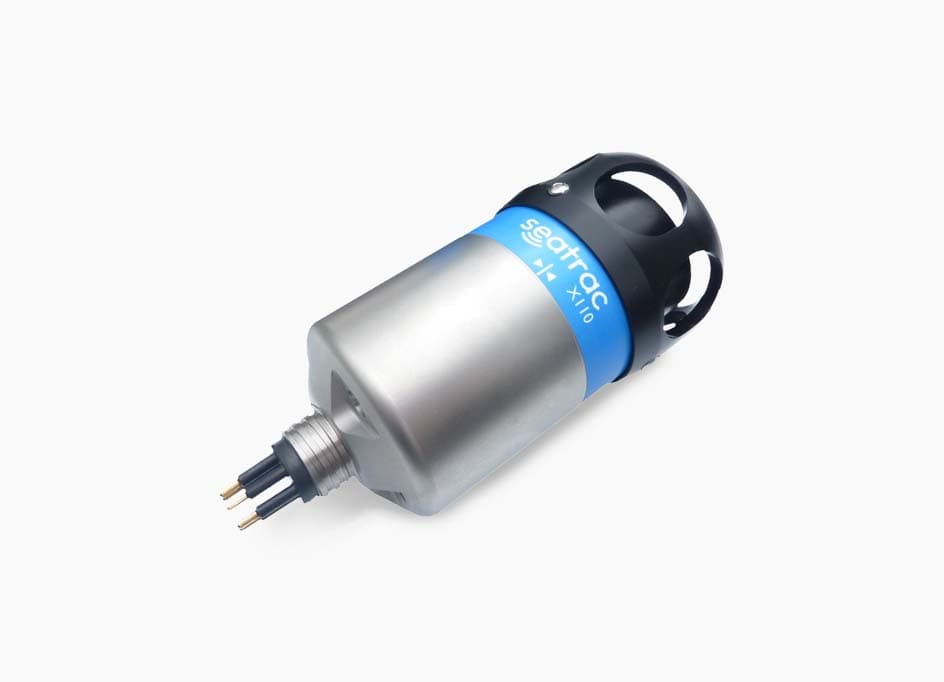

X010 Modem Beacon
20m X150 Deck Cable
USB/Power Splitter Cable
1m X010 Diagnostic Cable
1m X010 Cable Whip
X150 Pole Mounting Bracket
USB GPS Receiver
Universal AC-to-DC 24V Power Supply
SeaTrac PinPoint Windows Software and Electronic Manual
Reset Magnet
Peli™ Transit Case
SeaTrac General Specs
| Length | 106mm (4.2”) exc con - 134mm (5.3”) inc con |
|---|---|
| Weight | 690g in air - 500g in water |
| Diameter | 54mm body, 59mm cage |
| Depth Rating | 2000m |
| Construction | 316 Stainless Steel and Black ABS plastic |
| Operating Temp Range | -5°C to +40°C (23°F to 104°F) |
SeaTrac Acoustic Specs
| Ranging | Yes |
|---|---|
| Acoustic Range | 1km radius horizontal, 1km vertical (hemispherical) |
| Beacon Velocity | Active Doppler compensation, up to 15kts (28kph) |
| Range Resolution | ±0.1m (dependant on provided VOS accuracy |
| Velocity-of-Sound Rang | 1300ms to 1700ms (can auto-compute from water temp & depth) |
