Blueprint Oculus Multibeam Sonars | M370S

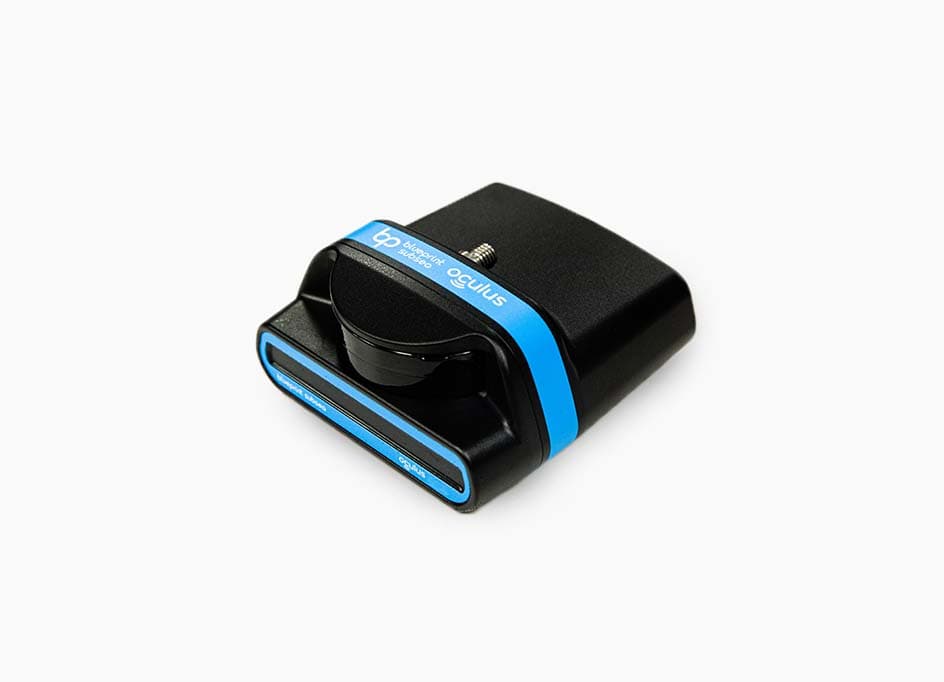

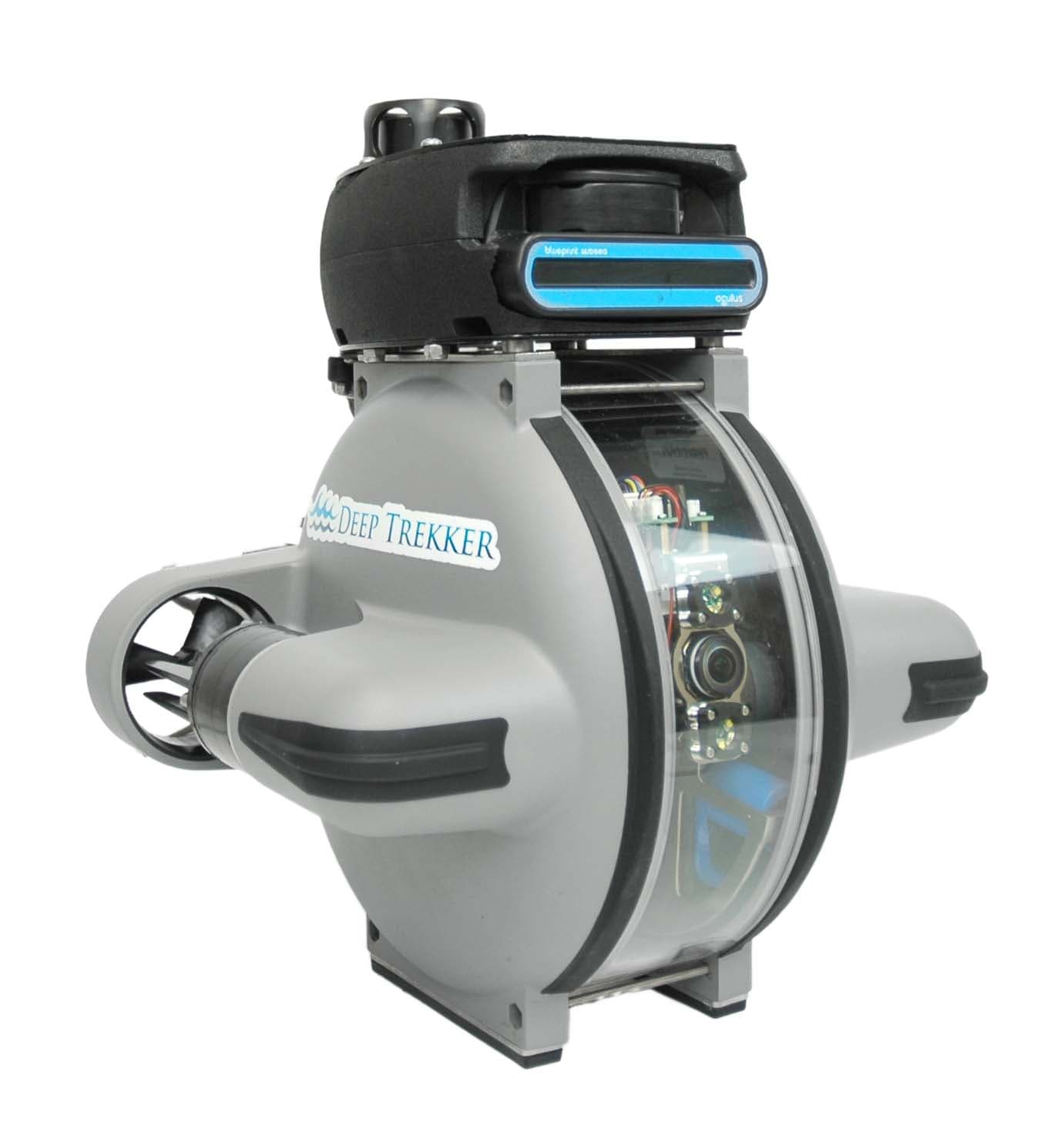

The M370s multibeam imaging sonar conveniently mounts to our ROVs or Utility Crawlers for effective target identification in turbid waters. The M370's low frequency allows for an operating distance up to 200m for extended visuals.
Error adding item to quote
Added to quote

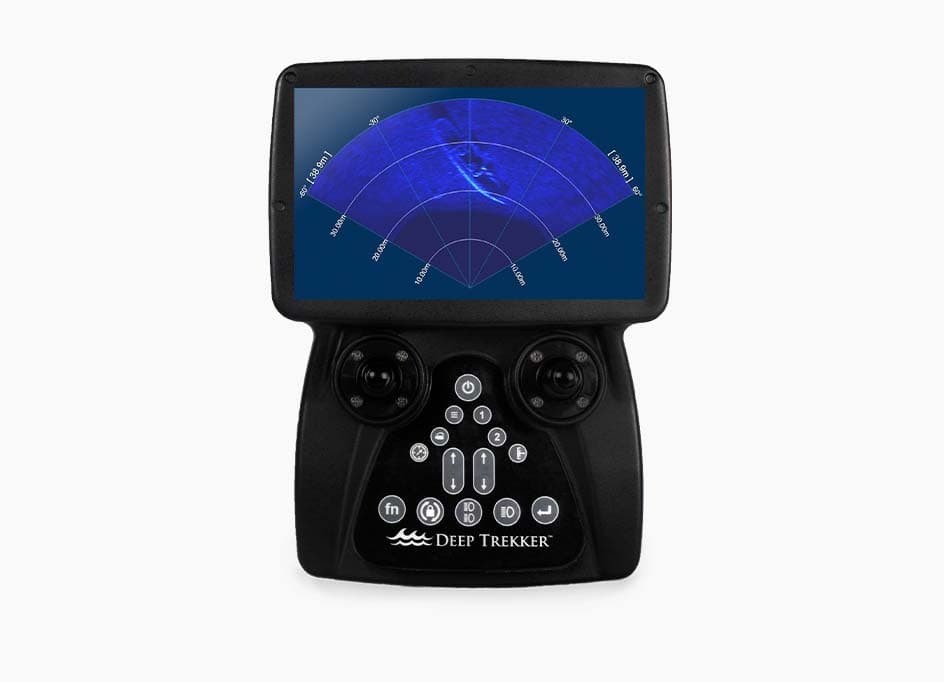

Integrated into controller
0.2m to 200m range
Single frequency mode
Long-range multibeam Imaging Sonar for murky water survey and inspection
The Blueprint M370S is a cost-efficient alternative to traditional sonars, offering a maximum range of 200m, an integrated velocimeter for improved accuracy, and an operating frequency of 375kHz.
Longer range capability than other imaging sonars (0.2m to 200m) but offers lower quality imagery in comparison to the M750 or M1200. Best suited for long-range navigation and open water Search and Recovery missions.
Longer range capability than other imaging sonars (0.2m to 200m) but offers lower quality imagery in comparison to the M750 or M1200. Best suited for long-range navigation and open water Search and Recovery missions.
Sonar for hull inspection
In inspection operations, particularly in murky water applications, it can be difficult to use just a camera to get an understanding of the condition of a structure.
For example, when inspecting the hull of a ship, you want to see if there are any major defects or corrosion, damage to the coating, zincs, anodes, propeller, check the coating condition, check if the hull needs to be cleaned.
Sonar for search and recovery
In Search and Recovery operations, First responders looking for evidence or drowning victims typically sweep an area using side scan sonar, identify potential targets and then investigate those targets to see if it is in fact the victim.
Low-visibility operations
Cameras and diver’s eyes often are unable to effectively search due to poor visibility underwater. An imaging sonar is the best tool to then reidentify the target, since oftentimes side scan data does not produce an exact location (so navigating back to the potential target can be difficult). Once the target is reidentified, the sonar can be used to continue to track the target as you move closer, and when you get close enough, it can even be used to perform the visual verification.
M370s Multibeam Acoustic Specs
| Frequency | 375kHz |
|---|---|
| Range (max) | 200m |
| Range (min) | 0.2m |
| Beam Seperation | 0.5° |
| Number of Beams | 256 |
| Range Resolution | 8mm |
| Update Rate (max) | 40Hz |
| Vertical Aperture | 20° |
| Angular Resolution | 2° |
| Horizontal Aperture | 130° |
M370s Multibeam Sonar Specs
| Width | 122mm (4.8 inch) |
|---|---|
| Height | 62mm (2.4 inch) |
| Length | 125mm (4.9 inch) |
| Construction | Anodised Aluminium (Titanium available on request) |
| Depth Rating | 300m |
| Weight in air | 980g (2.1lbs) |
| Weight in water | 360g (0.79lbs) |
| Operating & Storage Temperature | -5°C to +35°C (23°F 95°F) |
