BRIDGE Console | Advanced ROV Control Station
Looking for an all-in-one solution to manage your ROV missions with ease? The BRIDGE Console integrates all essential controls into a streamlined, weatherproof package, providing operators with a clean and efficient experience in any environment. Need a rugged, all-in-one control station? The BRIDGE Console integrates an 18.5” touchscreen, programmable buttons, and powerful connectivity in a weatherproof pelican case. Designed for optimal ROV management, it ensures a clean, reliable topside experience.
Error adding item to quote
Added to quote
Weatherproof IP66/IP53 Design
18.5” HD Display
Programmable Controls & Dials
Built-in BRIDGE box
Integrated Power Kit
Multi-Port Connectivity

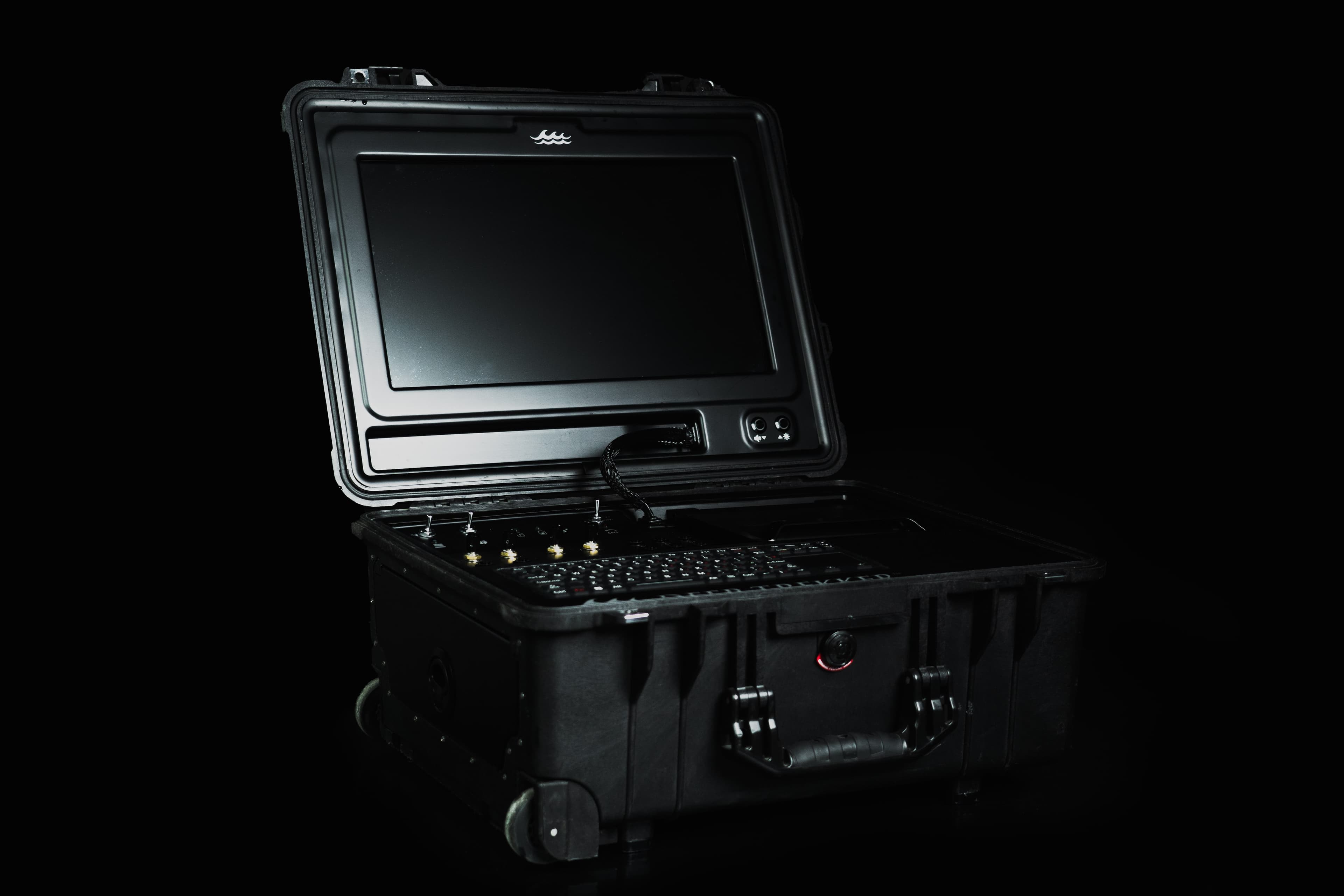

The BRIDGE Console provides an optimal control solution for ROV operations, integrating a large 18.5” display, keyboard, and multiple ports (Ethernet, USB, HDMI) within a durable, weatherproof casing. With fewer loose cables, it simplifies topside operations and reduces clutter, allowing for efficient setup in harsh environments. The built-in BRIDGE.box further enhances control flexibility with customizable configurations to suit user needs.
Designed for marine contractors, defense teams, and nuclear inspections, the BRIDGE Console offers reliable, versatile control in demanding conditions, making it an ideal control hub for complex missions.
Display Console Specs
| Case Type | Pelican 1560 Protector |
|---|---|
| Case Length | 22" |
| Case Width | 18" |
| Case Depth | 10.5" |
| Case Weight | 26kg |
| IP Rating Closed | IP66 |
| IP Rating Open | IP53 |
| Buttons Programmable | 8 |
| Buttons Screen Brightness Volume | 2 |
| Dials Programmable | 4 |
| Toggle PC Power | true |
| Toggle Vehicle and DPK Power | true |
| Toggle GFCI Test | true |
| Display Size | 18.5" |
| Display Touch Capability | 10-point capacitive |
| Display Response Time | 5ms |
| Display Resolution | 1920x1080 |
| Display Brightness | 1000 NIT |
| Power Source Type | Internal direct power kit |
| Power Battery Capacity | 100Wh |
| Power Full Battery Power Optional | In future |
| Internal DPK | Mandatory |
| User Ports HDMI | 2 |
| User Ports USB A | 4 |
| User Ports Micro SD Card | 1 |
| User Ports Ethernet Network | true |
| User Ports Ethernet Vehicle | true |
| Power Ports AC In | 120-250VAC |
| Power Ports 12V Out | true |
| Vehicle Reel 4 Pin Vehicle Port | true |
| Vehicle Reel DPK Reel Port | true |
| Wireless Wi Fi | true |
| Wireless Bluetooth | true |
| Compute Base | Lenovo Thinkstation Mini P3 (30H00018US) |
| Compute Processor | 13th Generation Intel® Core™ i5-13500T vPro® |
| Compute Operating System | Windows 11 Pro 64 |
| Compute GPU | NVIDIA® T400 4GB GDDR6 |
| Compute RAM | 16GB DDR5 |
| Compute Storage | 512GB SSD |
The BRIDGE Console provides an optimal control solution for ROV operations, integrating a large 18.5” display, keyboard, and multiple ports (Ethernet, USB, HDMI) within a durable, weatherproof casing. With fewer loose cables, it simplifies topside operations and reduces clutter, allowing for efficient setup in harsh environments. The built-in BRIDGE.box further enhances control flexibility with customizable configurations to suit user needs.
Designed for marine contractors, defense teams, and nuclear inspections, the BRIDGE Console offers reliable, versatile control in demanding conditions, making it an ideal control hub for complex missions.
Display Console Specs
| Case Type | Pelican 1560 Protector |
|---|---|
| Case Length | 22" |
| Case Width | 18" |
| Case Depth | 10.5" |
| Case Weight | 26kg |
| IP Rating Closed | IP66 |
| IP Rating Open | IP53 |
| Buttons Programmable | 8 |
| Buttons Screen Brightness Volume | 2 |
| Dials Programmable | 4 |
| Toggle PC Power | true |
| Toggle Vehicle and DPK Power | true |
| Toggle GFCI Test | true |
| Display Size | 18.5" |
| Display Touch Capability | 10-point capacitive |
| Display Response Time | 5ms |
| Display Resolution | 1920x1080 |
| Display Brightness | 1000 NIT |
| Power Source Type | Internal direct power kit |
| Power Battery Capacity | 100Wh |
| Power Full Battery Power Optional | In future |
| Internal DPK | Mandatory |
| User Ports HDMI | 2 |
| User Ports USB A | 4 |
| User Ports Micro SD Card | 1 |
| User Ports Ethernet Network | true |
| User Ports Ethernet Vehicle | true |
| Power Ports AC In | 120-250VAC |
| Power Ports 12V Out | true |
| Vehicle Reel 4 Pin Vehicle Port | true |
| Vehicle Reel DPK Reel Port | true |
| Wireless Wi Fi | true |
| Wireless Bluetooth | true |
| Compute Base | Lenovo Thinkstation Mini P3 (30H00018US) |
| Compute Processor | 13th Generation Intel® Core™ i5-13500T vPro® |
| Compute Operating System | Windows 11 Pro 64 |
| Compute GPU | NVIDIA® T400 4GB GDDR6 |
| Compute RAM | 16GB DDR5 |
| Compute Storage | 512GB SSD |
