MAG Crawler Robot
Make inspections easier and safer with robots for ferrous metal surfaces.

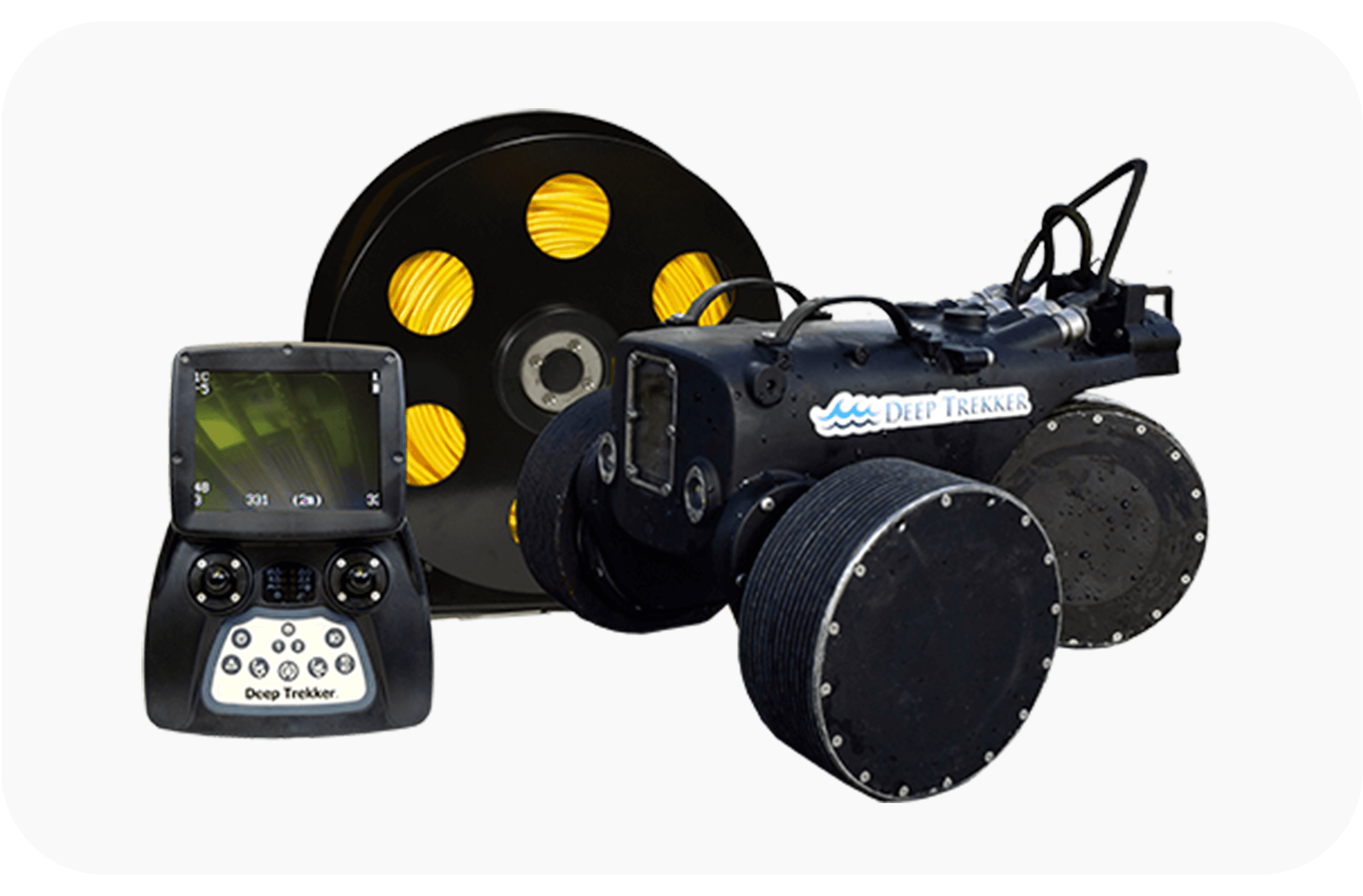

MAG ROBOT PACKAGE
MAG CRAWLER
Need to perform an inspection at a tough to reach location along a steel surface like a hull of a ship or in a vertical shaft? Stick the MAG crawling robot to the ferrous surface and drive along it instead of setting up scaffolding, fighting current underwater or getting confined space specialists to get the job done.
MAG CRAWLER
Need to perform an inspection at a tough to reach location along a steel surface like a hull of a ship or in a vertical shaft? Stick the MAG crawling robot to the ferrous surface and drive along it instead of setting up scaffolding, fighting current underwater or getting confined space specialists to get the job done.
Rapid response visual inspection
The MAG provides a safe and efficient alternative to ship hull and steel structure inspections. Its onboard HD camera and live-video feed provides operators with instant visual inspections in hard to reach and often impossible to access environments.
Custom build your own package
MAG Utility Crawler Add-ons
The Mag Utility Crawler is designed with complex inspections in mind. The platform provides live video to the handheld controller and can be equipped with purpose-built attachments. The variety of options transform the MAG Utility Crawler to efficiently and safely inspect investigation areas.
At A Glance
Battery operated
Depth rated to 50 m (164 ft)
Advanced sonar integration
360° turn radius
Magnetic wheels
Extremely durable
Modular design
Full HD Cameras
Two strong areas with Deep Trekker - products and after sales service. Excellent product for ship hull survey and event better 24 hour support from the service team!
Two strong areas with Deep Trekker - products and after sales service. Excellent product for ship hull survey and event better 24 hour support from the service team!
MAG Spec Highlights
| MAG General Specs | |
|---|---|
| Length : | 710 mm (27.95”) |
| Width : | 406 mm (13”) |
| Height : | 228 mm (9”) |
| Weight : | 16.6 kg (36.59 lb) |
| Materials : | Stainless Steel, Aluminum High Strength Acrylic |
| Depth Rating : | 50 m (164 ft) |
| Operating Temp : | -5C to 40c (23F - 104F) |
| Warranty : | 1 Year – Parts and Labor (optional 2-3 yrs) |
| Electrical System | |
|---|---|
| System : | 19.2 VDC (Lithium Batteries) |
| Sensors : | Incline, Roll, Leak, Camera Pan/Tilt |
| Drive System | |
|---|---|
| Power : | Planetary Gear Motor (2 pieces) |
| Wheel Control : | Steerable, Cruise Control, Infinitely Variable (Forward & Reverse) |
| Gear Train : | High Strength Oversized Gears |
| Final Drives : | Magnetically Coupled |
| Tether | |
|---|---|
| Tether Diameter : | 6.2 mm (0.24") |
| Tether Length : | 50 m - 400 m (164 ft - 1,312 ft) |
| Tether Construction : | Embedded Synthetic Fibers |
| Minimum Breaking Strength : | 150 kg (300 lb) |
| Tether Reel | |
|---|---|
| Construction : | Industrial tough; IP68 |
| Standard Length : | 75 m (246 ft) |
| Optional Capacity : | Up to 400 m (1,312) |
Deep Trekker reserves the right to amend these specifications at any time without notice.
