SPECTRA Offshore Inspection ROV

PRECISION. POWER. CLARITY.

SPECTRA ROV

Work-Class Capabilities in a Portable Platform.

SPECTRA Offshore Inspection ROV

PRECISION. POWER. CLARITY.

SPECTRA ROV

Work-Class Capabilities in a Portable Platform.

SPECTRA ROV

Designed for offshore Inspection, Repair and Maintenance (IRM) scopes of work. SPECTRA delivers stable operations in currents up to 4 knots, 1,000m depth capability, integrated NDT tooling, and real-time 3D mapping. Built for rapid mobilization, modular servicing, and high-uptime subsea operations.

SPECTRA ROV

Designed for offshore Inspection, Repair and Maintenance (IRM) scopes of work. SPECTRA delivers stable operations in currents up to 4 knots, 1,000m depth capability, integrated NDT tooling, and real-time 3D mapping. Built for rapid mobilization, modular servicing, and high-uptime subsea operations.

Key Specs:

1,000 m (3,280 ft) Depth Rating

4 Knot Maximum Speed

300,000 Total Lumens

4K Stereo Camera

  • 3D model of xmas tree (flythrough)
  • underwater rov, submersible robot, submersible drone, rov, inspection rov, underwater survey, underwater inspection, stereo camera, 3D sonar, 3D mapping
  • BRIDGE.app GIF
  • Dead Reckoning General GIF
  • Console GIF
  • Camera optimization GIF

    3D Modeling. Add a New Dimension to your Deliverables.

    • Site Mapping
    • Asset Visualization
    • Defect Measurement
    • Change Detection

    • 3D Modelling

    • Sonar SLAM

    • BRIDGE

    • Dead Reckoning

    • Flexible Control Options

    • Camera Optimization

        Perception & Localization

        Real-time 3D Sonar SLAM with integrated photogrammetry enables 3D mapping, high-resolution asset modeling, precise localization, and repeatable inspections in GNSS-denied or low-visibility.

        My First Webpage

        Perception & Localization

        Real-time 3D Sonar SLAM with integrated photogrammetry enables 3D mapping, high-resolution asset modeling, precise localization, and repeatable inspections in GNSS-denied or low-visibility.

        My First Webpage

        Photogrammetry & Digital Twin Generation

        3D Sonar SLAM-Based Navigation and Mapping

        Repeatable Survey Workflows

        Asset & Structural Mapping Precision

        See Photogrammetry Capabilities

        Why SPECTRA for Offshore Applications?

        Rated for up to 1,000 m in Depth

        4 Knot Forward Speed

        3 Knot Lateral Movement

        Rapid Modular Serviceability (Under 30 min)

        3D Sonar SLAM Navigation & Mapping

        Rotating 4K Stereo Camera
        Speak to an Industry Specialist

        Spec Highlights

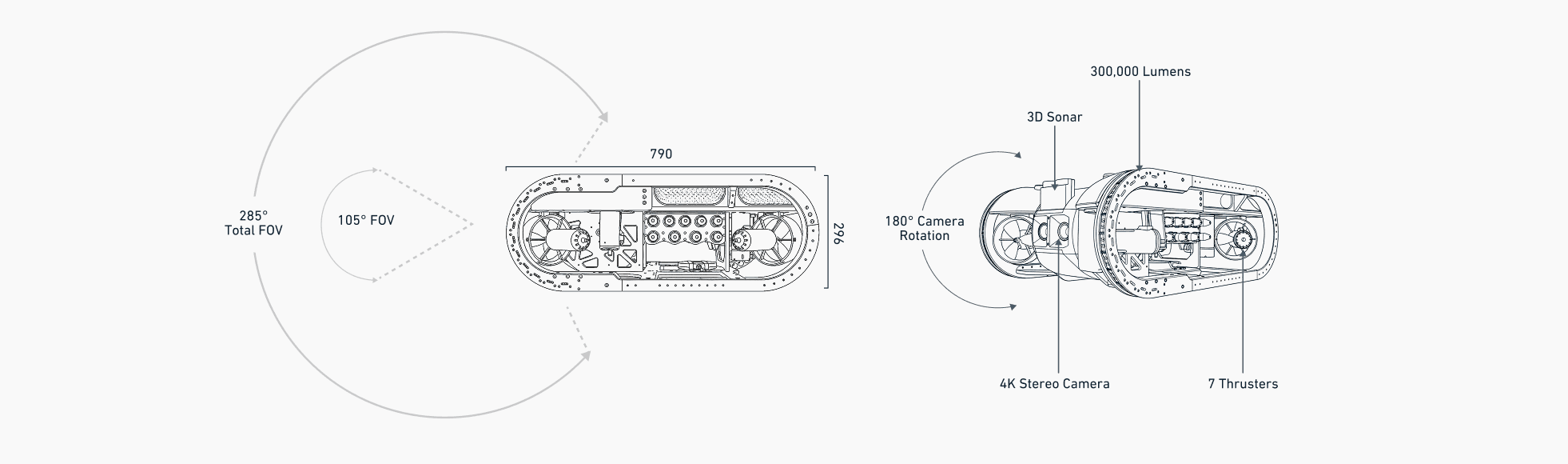

        spectra inline specs

        General Specs
        Width: 586 mm (23.1”)
        Height: 296 mm (11.7”)
        Length: 790 mm (31.1”)
        Weight (in air): 38 kg (84 lbs)
        Frame Material: HDPE, Stainless Steel, & Buoyancy Foam
        Depth Rating: 1,000 m (3,280 ft)
        Operating Temp: -10°C to 40°C (14°F - 104°F)
        Camera: Dual 4K Video - 12 MP Images
        Lights: Dual 150,000 Lumen Continuous LED Light Frame - Camera Tracking
        Sonar: 180° Rotation 2D Imaging & 3D Sonar
        Situational Awareness: Real-Time Sonar SLAM Enabled (With 3D Sonar Only)
        Case: SKB iSeries
        Warranty: 1 Year - Parts & Labor (Extended Options Available)
        Standard Tether: 300 m (Fiber), Additional km+ Options Available

        Thrusters
        Count: 7 Thrusters (4 Vectored, 3 Vertical)
        Type: Brushless Motors With Quick-Change Propeller
        Thrust Force: 40 kg (88 lbs)
        Forward velocity 4 Knots
        Lateral velocity 3 Knots

        Electrical System
        System voltage: 48VDC Nominal
        Accessory Port Power 1000W @ 48V
        Onboard Comms: Gigabit Ethernet, RS485, RS232
        Power options: Direct Power
        Topside Voltage Range 100-260 VAC, 50-60Hz
        Max Power Draw 7200W

        Deep Trekker reserves the right to amend these specifications at any time without notice.
