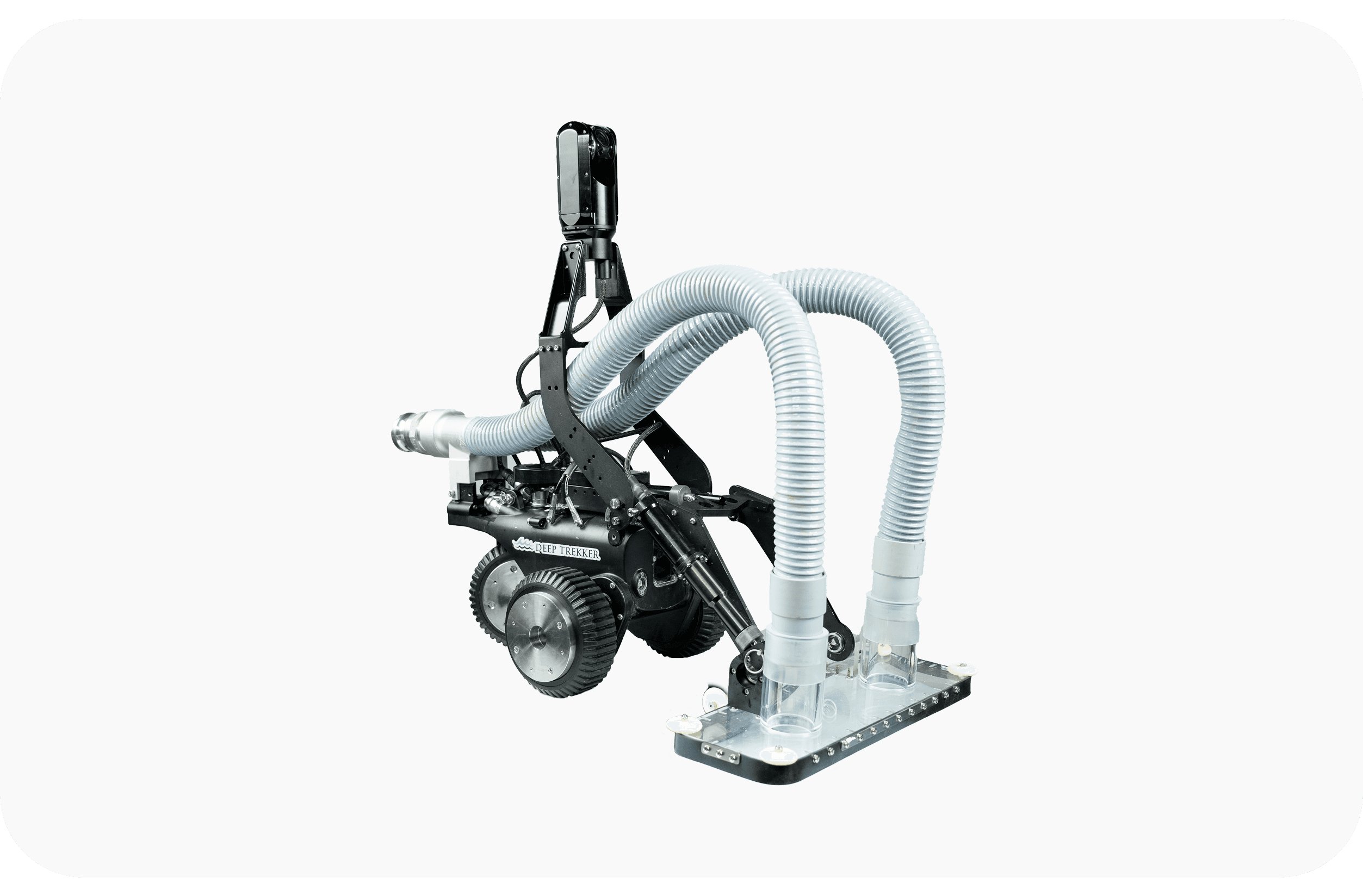

VAC Tank Cleaning Robot
VAC
Want to clean sediment from the bottom of a water storage tank without hiring divers or draining it? The VAC Package gives you an easy to operate option for proactive cleaning of potable tanks and towers.
VAC
Want to clean sediment from the bottom of a water storage tank without hiring divers or draining it? The VAC Package gives you an easy to operate option for proactive cleaning of potable tanks and towers.
Compact and portable vacuum robot
Built to be transported in two cases, our VAC robots can be immediately launched in any location. The perfect robotic system for remote tank cleaning. Customize your unit with specific attachments for your project at hand.
At a glance
Battery operated
Low maintenance
Fully submersible
360° turn radius
Enhanced 4K Cameras
Extremely durable
Simple to use controls
Various vacuum attachments
VAC ROBOTIC CRAWLER SPECIFICATIONS
| VAC Specifications | |
|---|---|
| Length : | 710 mm (27.95”) |
| Width : | 406 mm (13”) |
| Height : | 228 mm (9”) |
| Weight : | 15 kg (34 lb) |
| Materials : | Stainless Steel Aluminum High Strength Acrylic |
| Submersible Depth Rating : | 50 m (164 ft) |
| Wheels : | Rubber 2WD |
| Turn Radius : | 0 mm (0") |
| Speed : | 12 m / min |
| Operating Temp : | -5C to 40C (23F – 104F) |
| Warranty : | 1 Year – Parts and Labor (optional 2-3 yrs) |
| Electrical System | |
|---|---|
| System : | 19.2 VDC (Lithium Batteries) |
| Sensors : | Incline, Roll, Leak, Camera Pan/Tilt |
| Lighting : | 900 Lumens |
| Camera : | Enhanced 4K Camera |
| Drive System | |
|---|---|
| Power : | Planetary Gear Motor (2 pieces) |
| Wheel Control : | Steerable, Cruise Control, Infinitely Variable (Forward & Reverse) |
| Gear Train : | High Strength Oversized Gears |
| Final Drives : | Magnetically Coupled |
| Tether | |
|---|---|
| Tether Diameter : | 6.2 mm (0.24") |
| Tether Length : | 50 m - 400 m (164 ft - 1,312 ft) |
| Tether Construction : | Polyurethane Outer Jacket with Embedded Synthetic Fibers |
| Minimum Breaking Strength : | 150 kg (300 lbs) |
| Tether Reel | |
|---|---|
| Construction : | Industrial tough; IP68 |
| Standard Tether Length : | 75 m (264 ft) |
| Optional Capacity : | Up to 400 m (1,312) |
Deep Trekker reserves the right to amend these specifications at any time without notice.
