PHOTON ROV | Package
Want the ultimate portable “suitcase” ROV? Using Deep Trekker’s reliable build quality and BRIDGE technology to power it, the PHOTON offers users a lightweight option with advanced survey capabilities. The rotating enhanced 4K camera, six thruster design, and ability to expand with additional tools and sensors make this a great starting point for any ROV inspection operation.
Error adding item to quote
Added to quote
6 thruster stability
Depth Rating 120 m
200 degree 4K rotating camera
Intelligent sensors - depth, heading, temperature, and more
Field swap batteries
Direct Power Option available
Everything you need to perform an inspection or survey out of the box.
The PHOTON Base package includes our enhanced 4K camera, LED floodlights, a swappable battery, 100m tether, tether reel, controller, and carrying cases.
Enhanced 4K Camera
The high quality lens upgrade and proprietary image processing algorithms through Deep Trekker’s Bridge software provide users with an optimal underwater viewing experience including a wider field of view, enhanced clarity and auto colour correction.

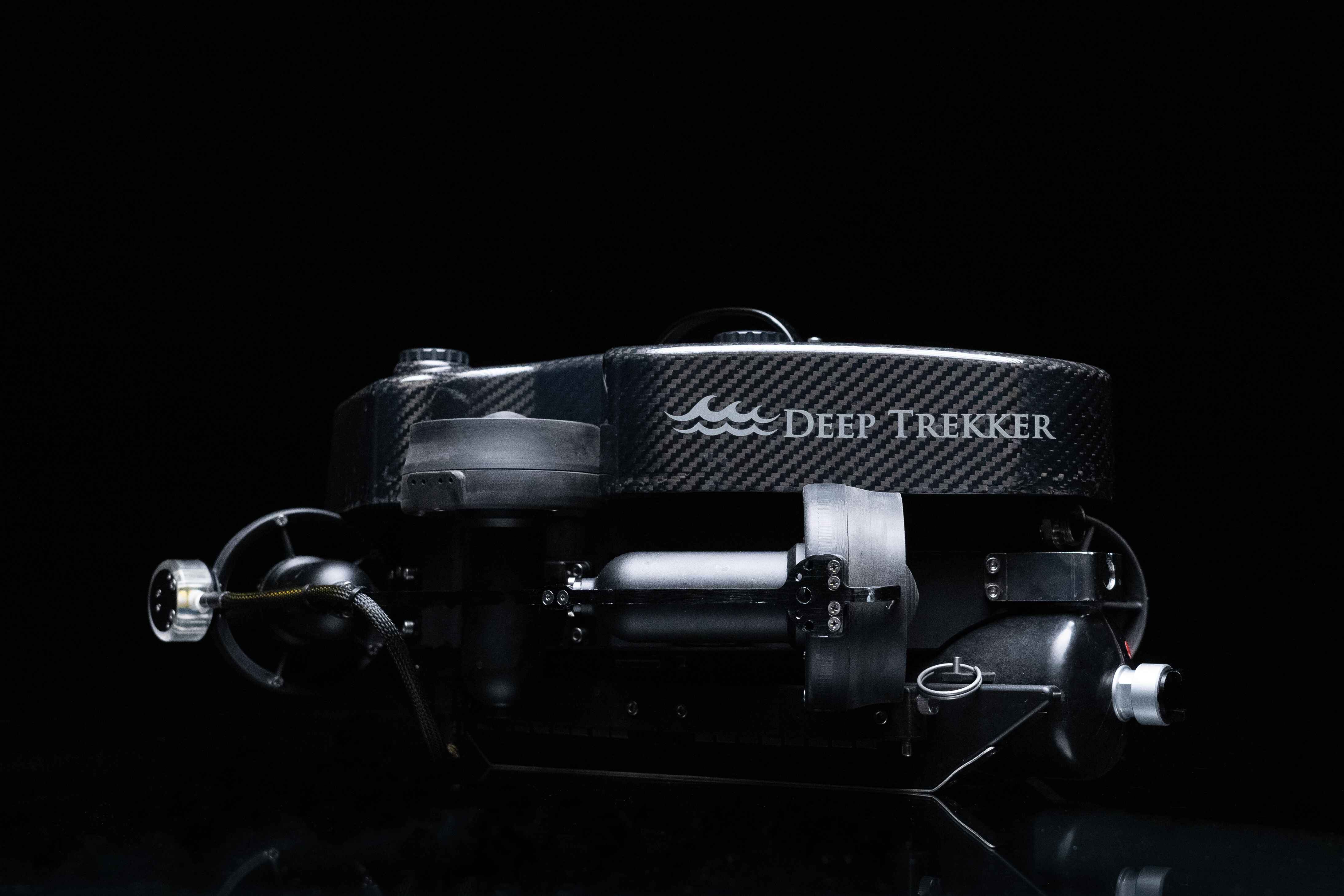

Built to last
Designed to provide years of service the PHOTON is made for tough jobs. Built with tough materials like carbon fiber and aluminum, paired with magnetically coupled drives, stainless steel components, and acrylic lens cover ensure durability in the harshest of conditions.
Stability and power
Equipped with 6 strong thrusters powered by lithium-ion batteries or an optional direct power kit, the PHOTON provides users with stability, power, speed, and control in a portable package. Lateral movement and ??-degree range of motion on the 4K camera allow users to complete inspections in a timely, straightforward manner.
Portability
Under 20 pounds and contained within a Pelican case, the PHOTON is easily portable. With a ROV battery tube under 100whr, the PHOTON is certified for both passenger and cargo airplanes for easy and convenient travel. Ease of portability means that one vehicle can be used for numerous jobs at several locations.
Straightforward operations
With the handheld 7” LCD controller and straightforward operations, the PHOTON is easy to use allowing operators to be trained quickly. Lateral movement simplifies navigation during remote inspection work. Finally, the modular design makes adding tools convenient - even in the field.
Photon ROV
150 m tether
7-inch, sunlight-readable, Controller
Wheeled Pelican Case
Heavy duty tether reel with bearings and electrical slip ring for easy tether management
Operator manual
Comprehensive sensor integrations
1 Year Warranty
1 ROV Battery
Chargers
200 Degree Rotating 4K camera head with LED Floodlights
PHOTON General Specs
| Width | 332 mm |
|---|---|
| Height | 228 mm |
| Length | 481 mm |
| Warranty | 1 Year – Parts and Labor (optional 2-3 yrs) |
| Depth Rating | 120 m (400 ft) |
| Body Material | Anodized Machined Aluminum, Carbon Fiber, & Stainless Steel, Buoyancy Foam |
| Case (option) | Custom Pelican Air 1637 Handle and Wheels |
| Operating Temp | -10°C to 50°C (14°F – 122°F) |
| Weight (in air) | 11.6 kg (25.6 lbs) |
| Window Material | Sapphire & Acrylic |
| Drives/Thrusters | Magnetically Coupled/Sealed |
PHOTON Electrical Specs
| System Voltage | 19.2 VDC |
|---|---|
| Thruster Control | 6x Independent Control, Infinitely Variable, 100% Reversible |
ROV Lights
| Video | Enhanced 4K Camera |
|---|---|
| Lights | High Efficiency LED, Fully Dimmable, 1000 Lumens Tracking with Camera, Optional: 1000-4400 Lumens Add-ons |

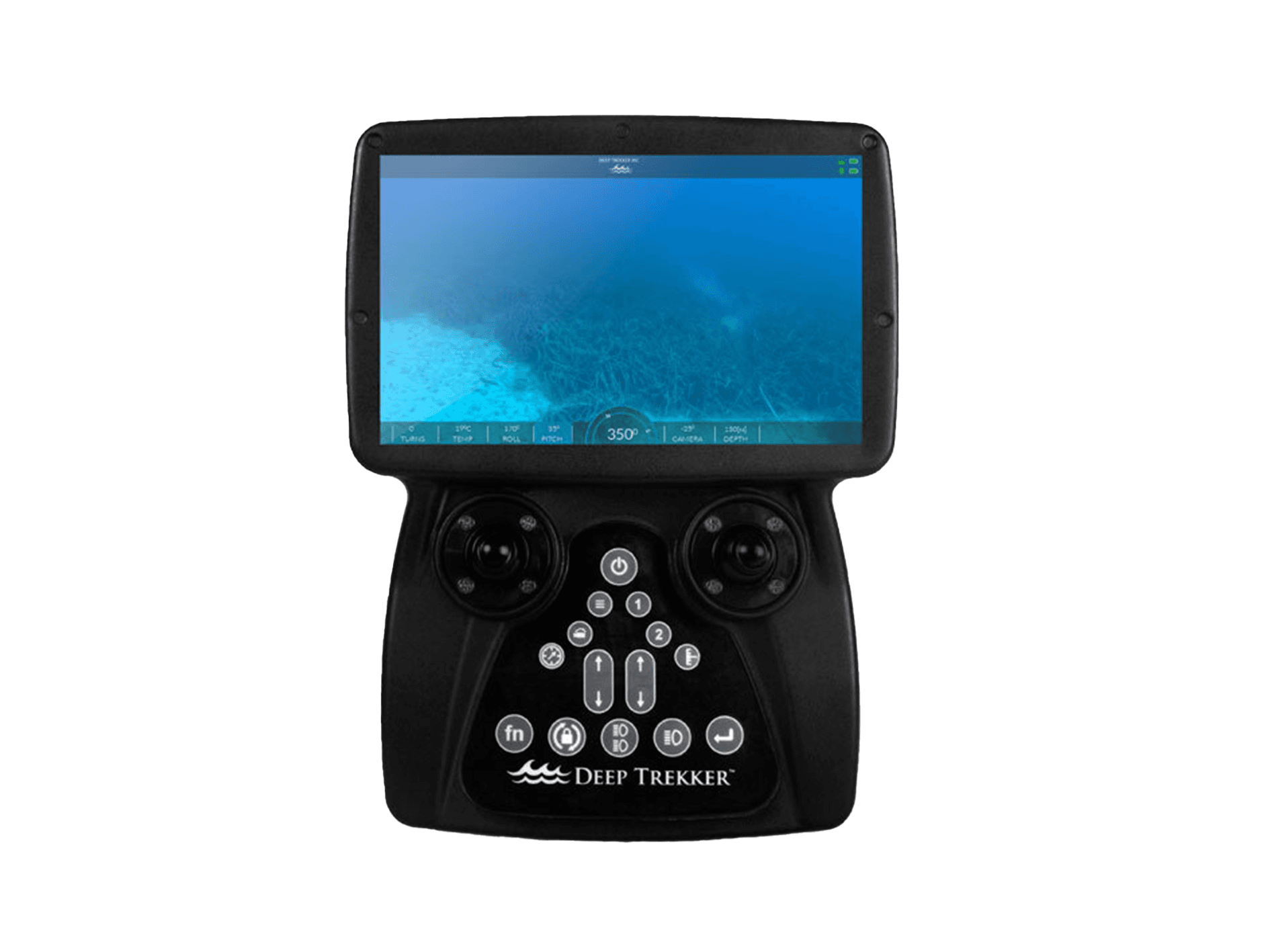

Controller with BRIDGE Technology
| Screen | 178 mm (7”) Wide-Angle LCD |
|---|---|
| Controller | 16:9 Up to 4K Recording, Weatherproof, Connectivity USB, SD, HDMI and Ethernet |
ROV Tether
| Tether Length | 50 m (Varies by package or Can Customize in Quote) |
|---|---|
| Tether Weight | Neutrally Buoyant in Water |
| Tether Diameter | 4.5 mm (0.18'') - 6.5 mm (0.26'') |
| Tether Construction | Polyurethane outer jacket with embedded light weight synthetic fibers |
| Maximum Working Strength | 25 kg (55 lbs) |
| Minimum Breaking Strength | 90 kg (200 lbs) |
| Tether Length Options | 300m, 500m, 850m, 2km |
Enhanced 4K Camera Specs
| Video Resolution | 4K30, 1080p30 |
|---|---|
| Video Format | H.264, H.265 |
| Snapshot Resolution | 8MP |
| Snapshot Format | JPEG |
| Image Sensor | Sony, (1/2.5”) |
| Lens | 2.7mm F2.9 |
| Features | AE, WDR, AWB, OSD Data overlay |
| Adjustable Settings | AWB, Brightness / Saturation / Contrast |
| Minimum Illumination | 0.001 Lux |
Everything you need to perform an inspection or survey out of the box.
The PHOTON Base package includes our enhanced 4K camera, LED floodlights, a swappable battery, 100m tether, tether reel, controller, and carrying cases.
Enhanced 4K Camera
The high quality lens upgrade and proprietary image processing algorithms through Deep Trekker’s Bridge software provide users with an optimal underwater viewing experience including a wider field of view, enhanced clarity and auto colour correction.
Built to last
Designed to provide years of service the PHOTON is made for tough jobs. Built with tough materials like carbon fiber and aluminum, paired with magnetically coupled drives, stainless steel components, and acrylic lens cover ensure durability in the harshest of conditions.
Stability and power
Equipped with 6 strong thrusters powered by lithium-ion batteries or an optional direct power kit, the PHOTON provides users with stability, power, speed, and control in a portable package. Lateral movement and ??-degree range of motion on the 4K camera allow users to complete inspections in a timely, straightforward manner.
Portability
Under 20 pounds and contained within a Pelican case, the PHOTON is easily portable. With a ROV battery tube under 100whr, the PHOTON is certified for both passenger and cargo airplanes for easy and convenient travel. Ease of portability means that one vehicle can be used for numerous jobs at several locations.
Straightforward operations
With the handheld 7” LCD controller and straightforward operations, the PHOTON is easy to use allowing operators to be trained quickly. Lateral movement simplifies navigation during remote inspection work. Finally, the modular design makes adding tools convenient - even in the field.
Photon ROV
150 m tether
7-inch, sunlight-readable, Controller
Wheeled Pelican Case
Heavy duty tether reel with bearings and electrical slip ring for easy tether management
Operator manual
Comprehensive sensor integrations
1 Year Warranty
1 ROV Battery
Chargers
200 Degree Rotating 4K camera head with LED Floodlights
PHOTON General Specs
| Width | 332 mm |
|---|---|
| Height | 228 mm |
| Length | 481 mm |
| Warranty | 1 Year – Parts and Labor (optional 2-3 yrs) |
| Depth Rating | 120 m (400 ft) |
| Body Material | Anodized Machined Aluminum, Carbon Fiber, & Stainless Steel, Buoyancy Foam |
| Case (option) | Custom Pelican Air 1637 Handle and Wheels |
| Operating Temp | -10°C to 50°C (14°F – 122°F) |
| Weight (in air) | 11.6 kg (25.6 lbs) |
| Window Material | Sapphire & Acrylic |
| Drives/Thrusters | Magnetically Coupled/Sealed |
PHOTON Electrical Specs
| System Voltage | 19.2 VDC |
|---|---|
| Thruster Control | 6x Independent Control, Infinitely Variable, 100% Reversible |
ROV Lights
| Video | Enhanced 4K Camera |
|---|---|
| Lights | High Efficiency LED, Fully Dimmable, 1000 Lumens Tracking with Camera, Optional: 1000-4400 Lumens Add-ons |
Controller with BRIDGE Technology
| Screen | 178 mm (7”) Wide-Angle LCD |
|---|---|
| Controller | 16:9 Up to 4K Recording, Weatherproof, Connectivity USB, SD, HDMI and Ethernet |
ROV Tether
| Tether Length | 50 m (Varies by package or Can Customize in Quote) |
|---|---|
| Tether Weight | Neutrally Buoyant in Water |
| Tether Diameter | 4.5 mm (0.18'') - 6.5 mm (0.26'') |
| Tether Construction | Polyurethane outer jacket with embedded light weight synthetic fibers |
| Maximum Working Strength | 25 kg (55 lbs) |
| Minimum Breaking Strength | 90 kg (200 lbs) |
| Tether Length Options | 300m, 500m, 850m, 2km |
Enhanced 4K Camera Specs
| Video Resolution | 4K30, 1080p30 |
|---|---|
| Video Format | H.264, H.265 |
| Snapshot Resolution | 8MP |
| Snapshot Format | JPEG |
| Image Sensor | Sony, (1/2.5”) |
| Lens | 2.7mm F2.9 |
| Features | AE, WDR, AWB, OSD Data overlay |
| Adjustable Settings | AWB, Brightness / Saturation / Contrast |
| Minimum Illumination | 0.001 Lux |
