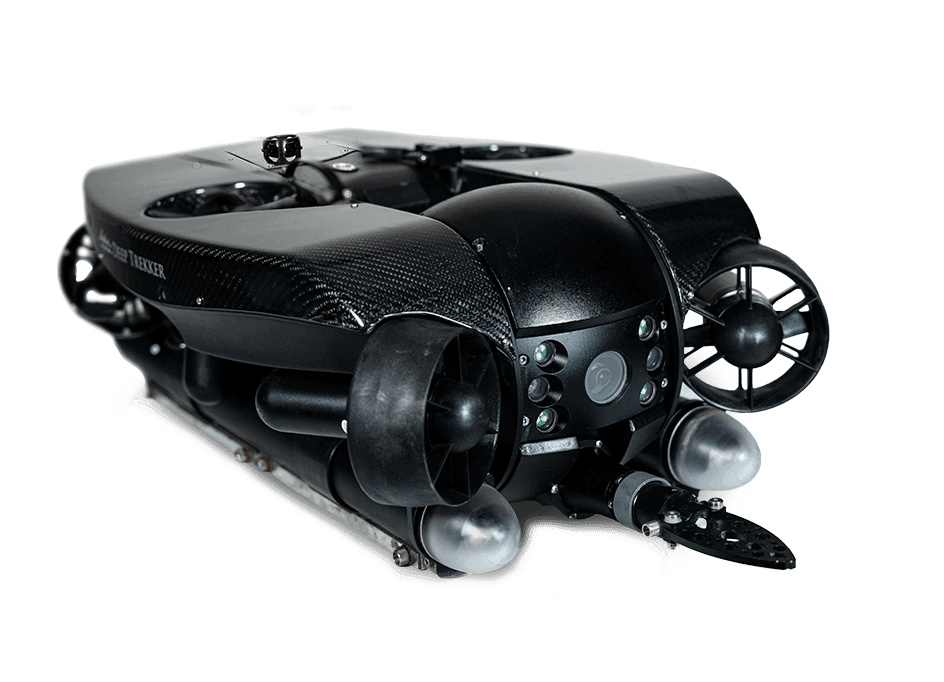

REVOLUTION ROV | NAV Package
The REVOLUTION NAV provides users with real time location data making locating, tracking and operating an ROV easier than ever before. Advanced stabilization features allow users to station hold against currents and pilot their vehicle precisely and accurately through varying water conditions. The revolving head provides unmatched flexibility for key attachments, allowing you to rotate your imaging sonar, enhanced 4K camera and grabber to get the optimal angle depending on the task at hand. Each REVOLUTION purchase includes a free online training session with our Technical Trainer to set you up for success.
Error adding item to quote
Added to quote
Depth rating 305 m
Quick-swap batteries
Revolving head
Ultra High Definition Camera
Extreme mobility and stabilization control
Comprehensive sensor integrations

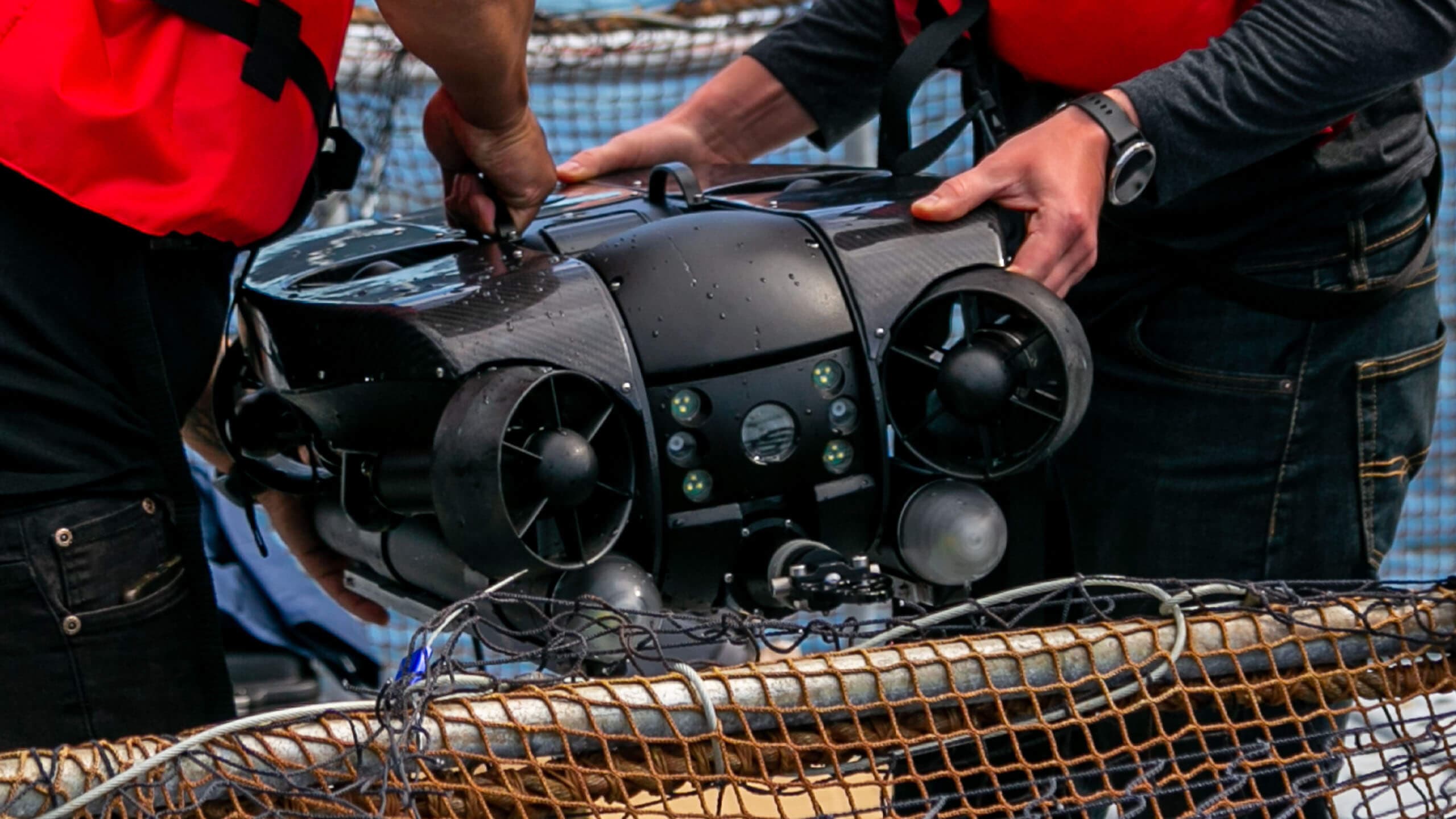

The most advanced and intuitive ROV in it's class

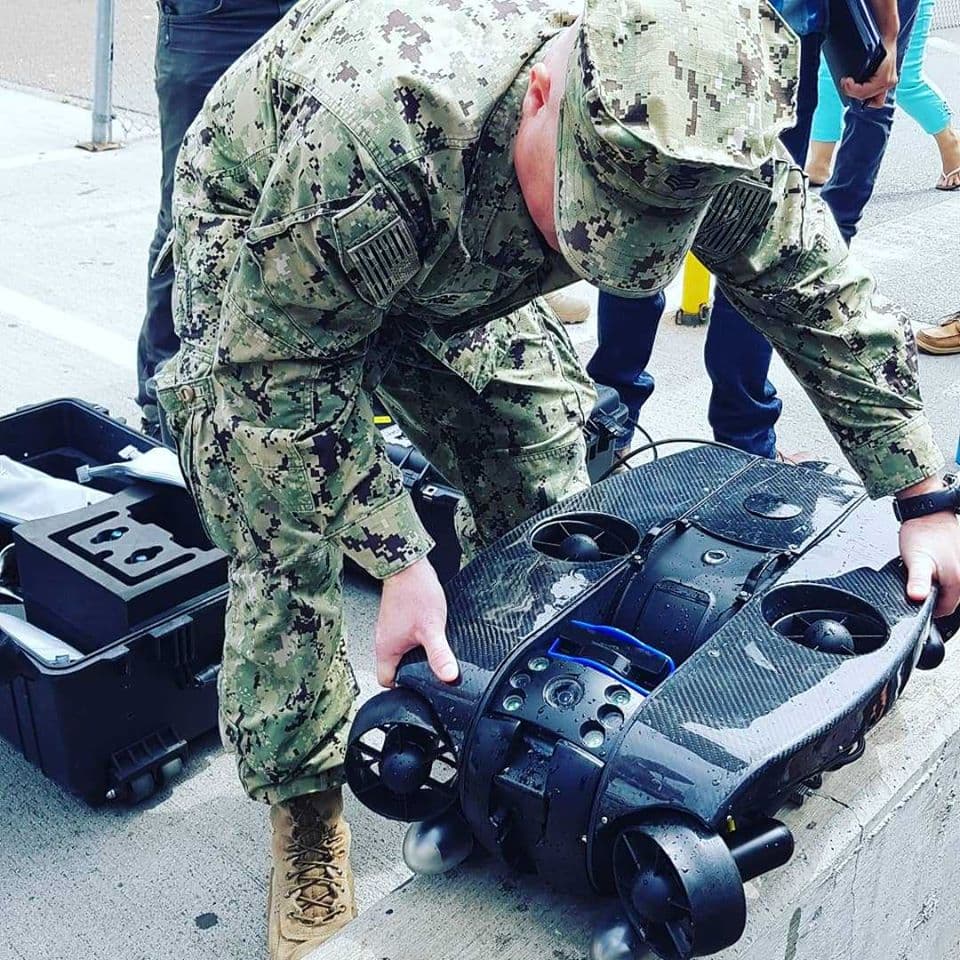

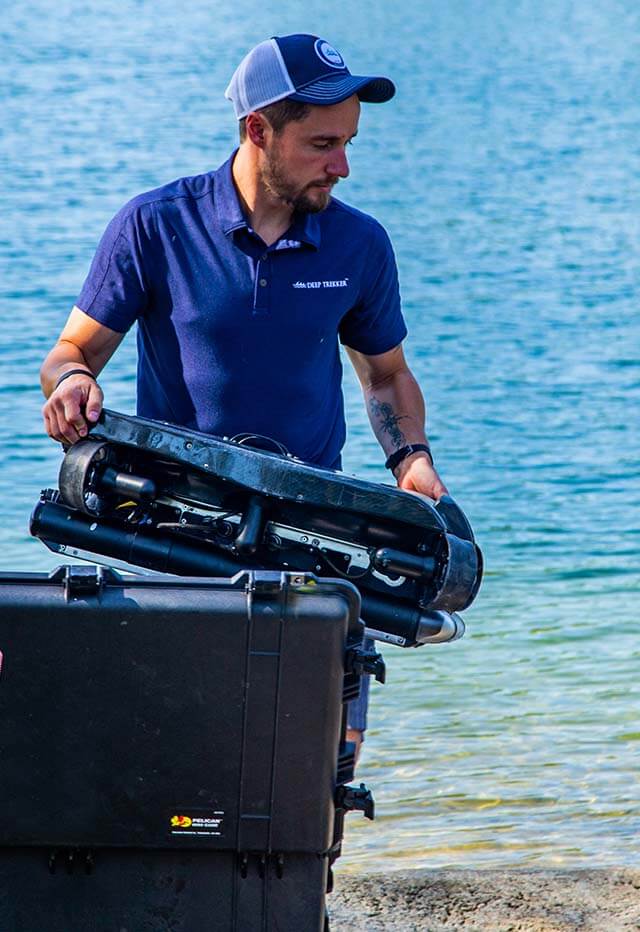

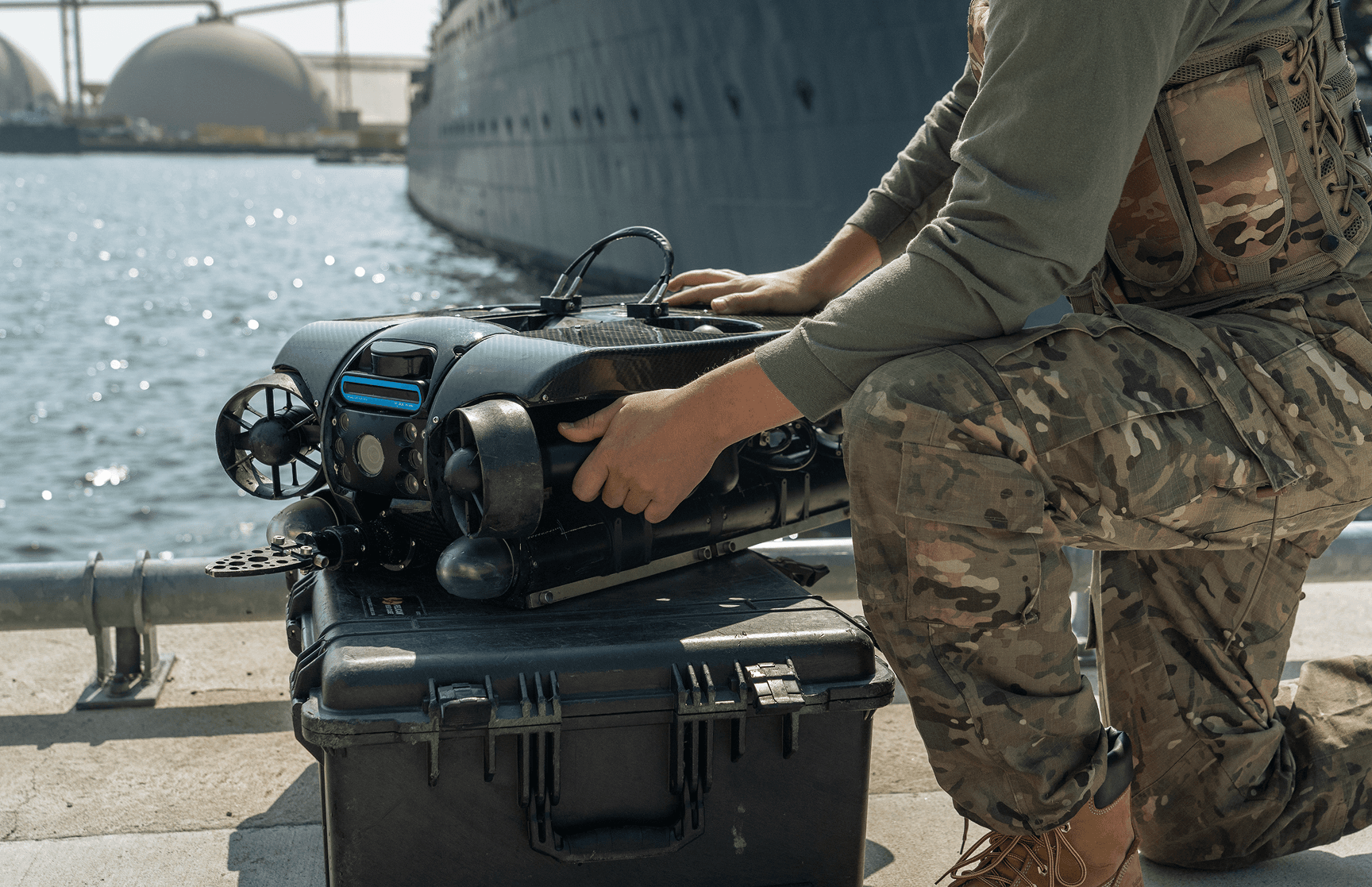

One to two person deployable, the REVOLUTION ROV is out of the box and in the water within minutes.
Enhanced 4K Camera
The high quality lens upgrade and proprietary image processing algorithms through Deep Trekker’s Bridge software provide users with an optimal underwater viewing experience including a wider field of view, enhanced clarity and auto colour correction.

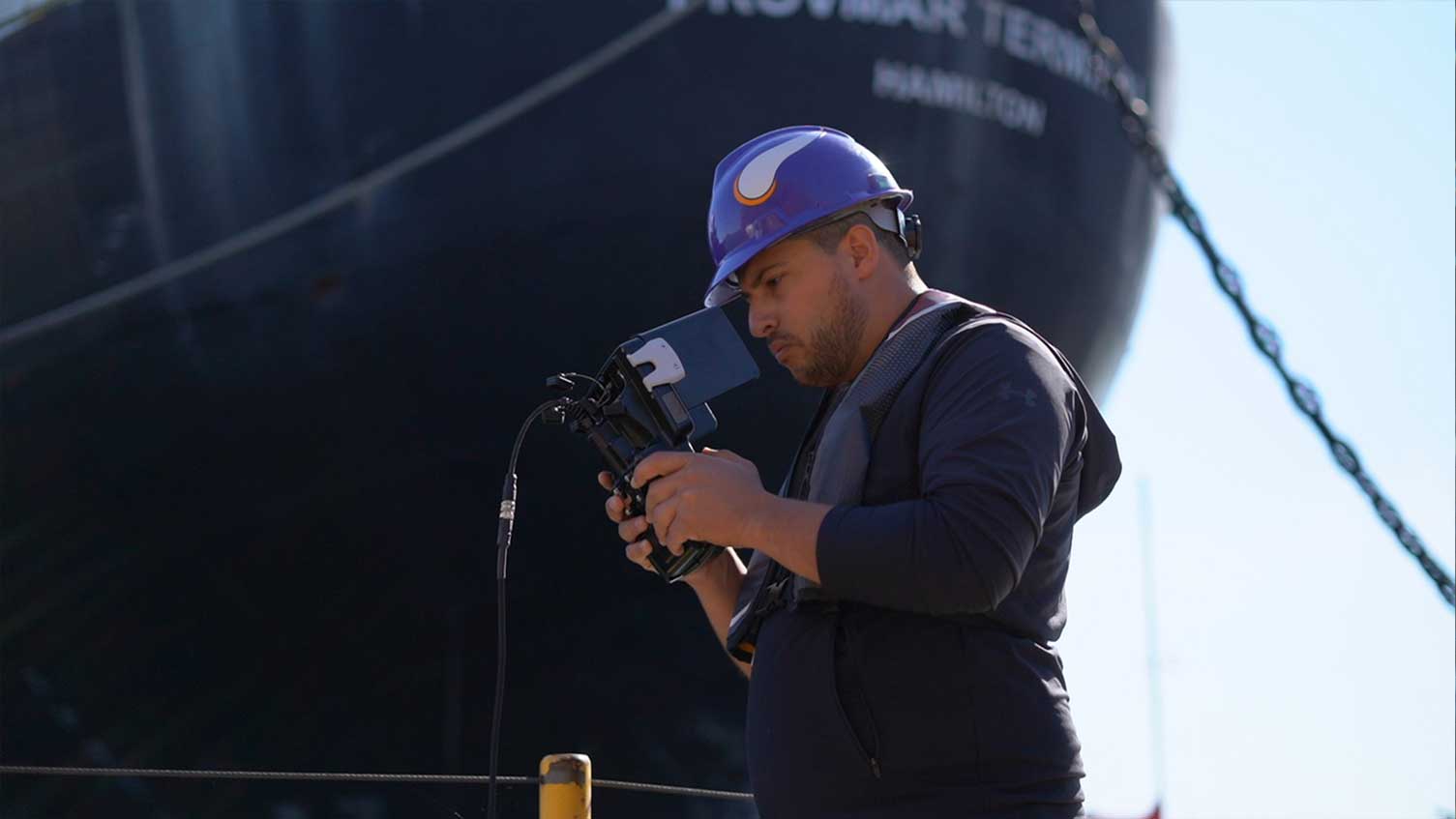

Easy locating, tracking and operating

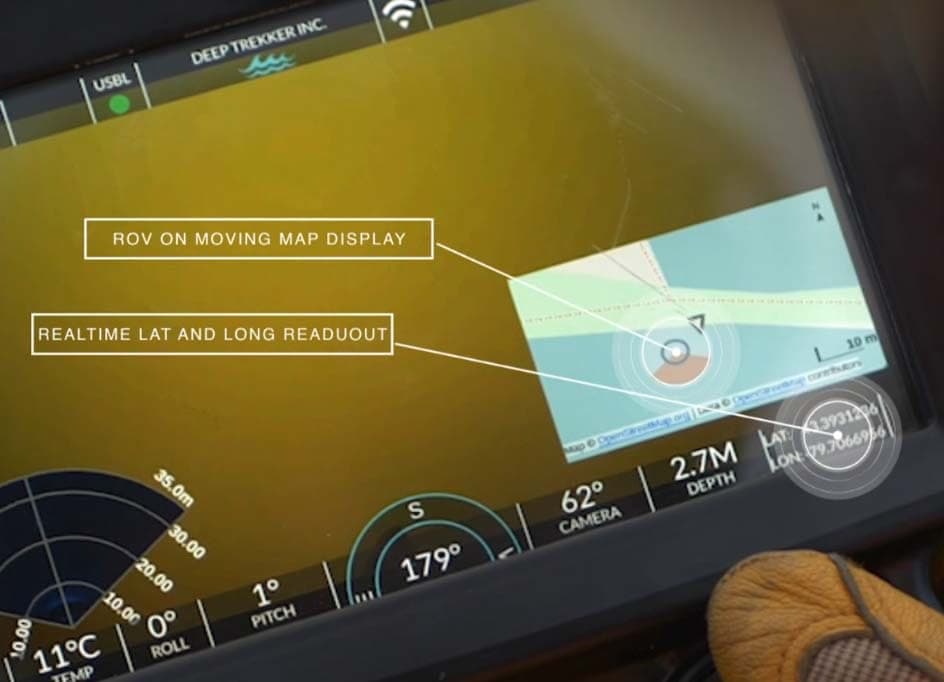

The REVOLUTION NAV package provides pilots with a Google map showing their ROV’s position on screen, allowing users to see where they are, leave a trail to show where they have been and set points of interest where they want to return to. This is especially useful for applications in open, murky water or when there is significant current.

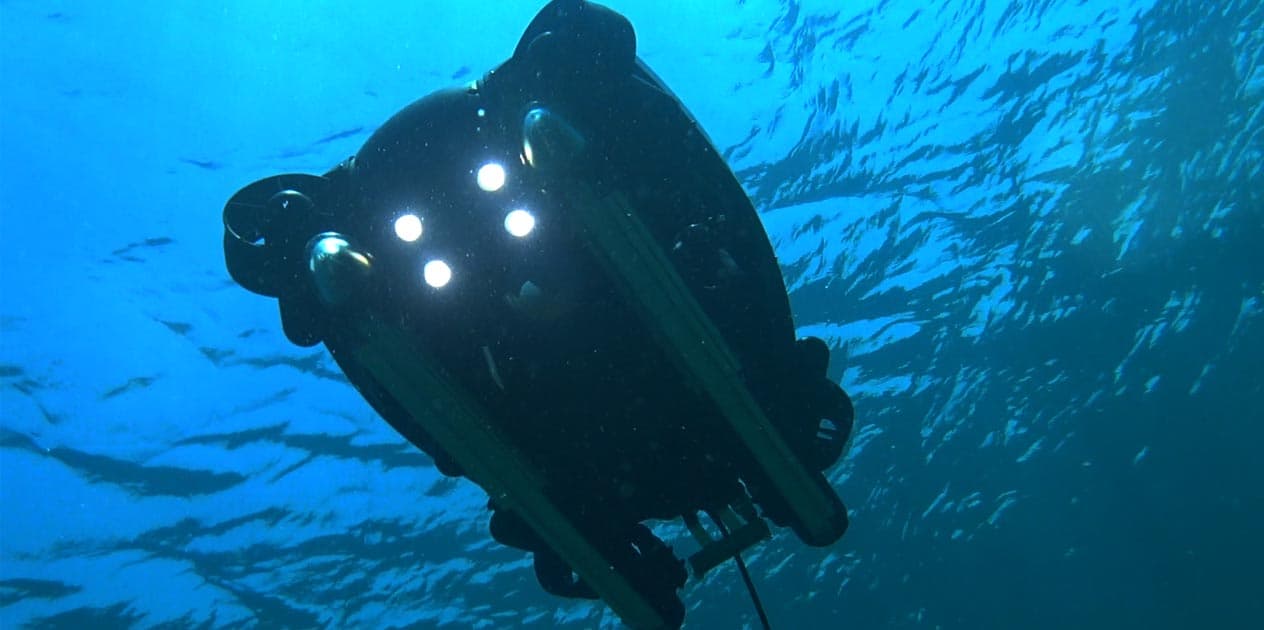

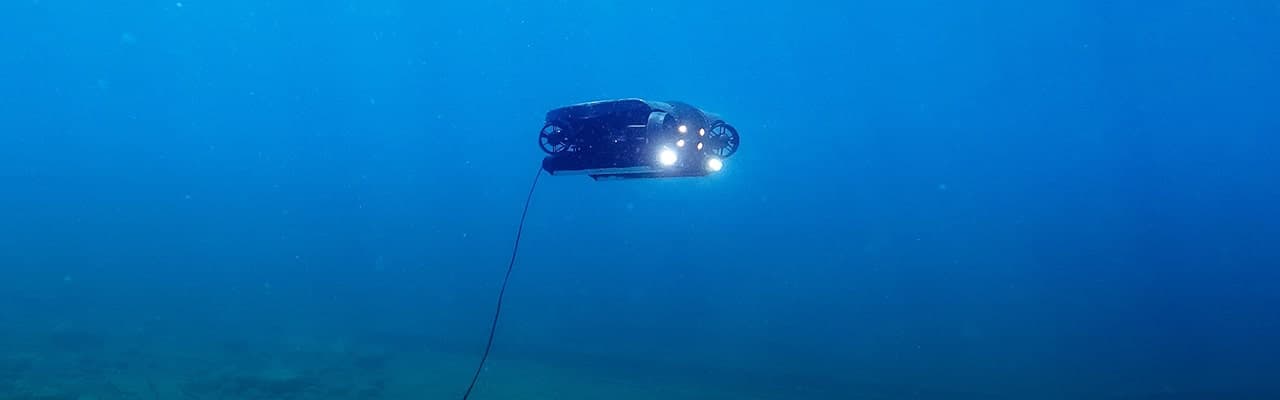

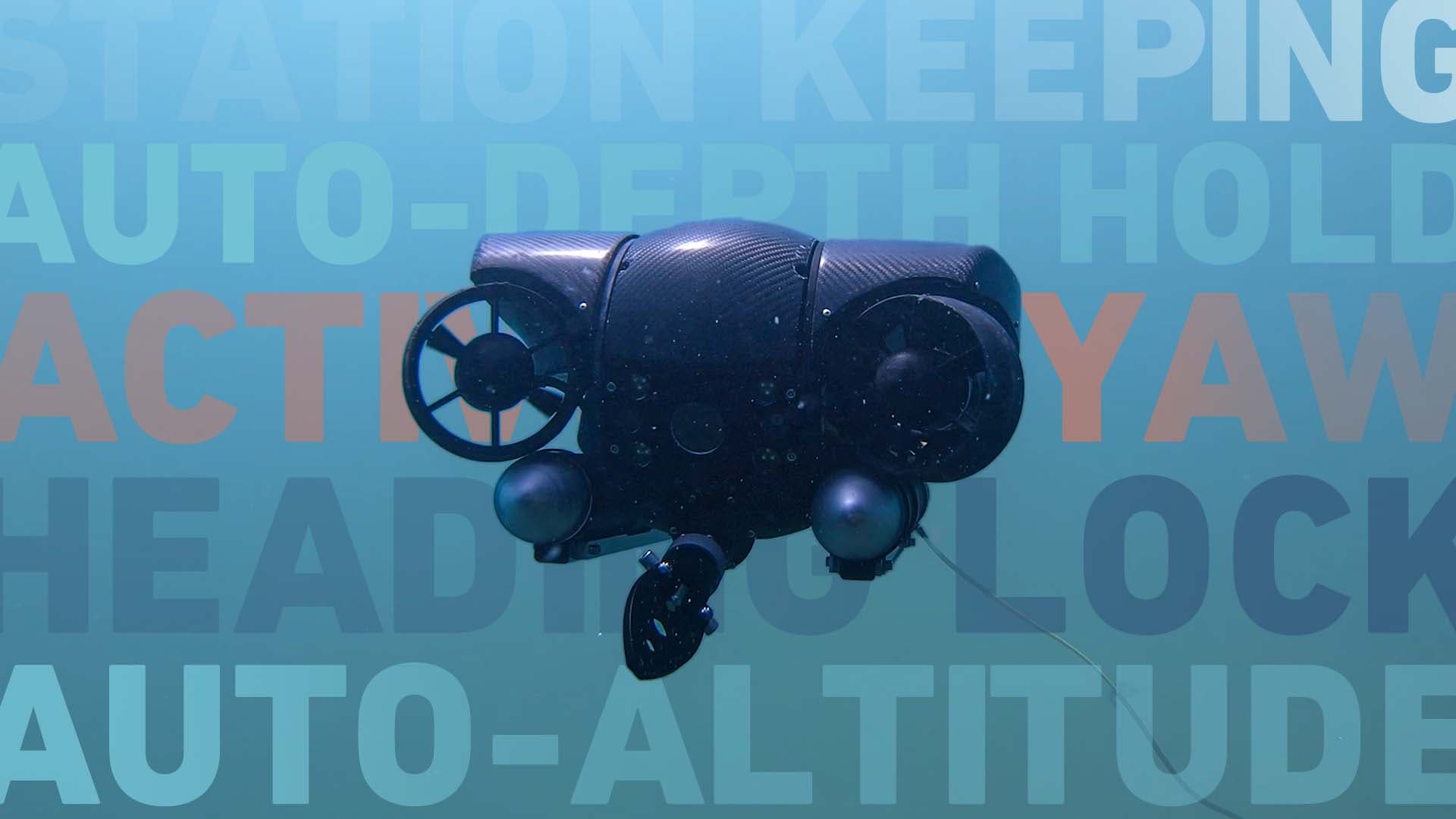

Advanced Stabilization
The REVOLUTION NAV has advanced stabilization features to allow users to station hold against currents and pilot their vehicle precisely and accurately through varying water conditions. Auto altitude provides pilots with an accurate way to hold an exact distance from the bottom.
Sensor Fusion
Deep Trekker's Bridge software utilizes the various sensor data from IMUs, DVLs, USBLs and more to help the ROV hold its position and travel to new locations more precisely by feeding off of each other's data. The sensors are optimized and compensated for as you add more intelligence to the vehicle.

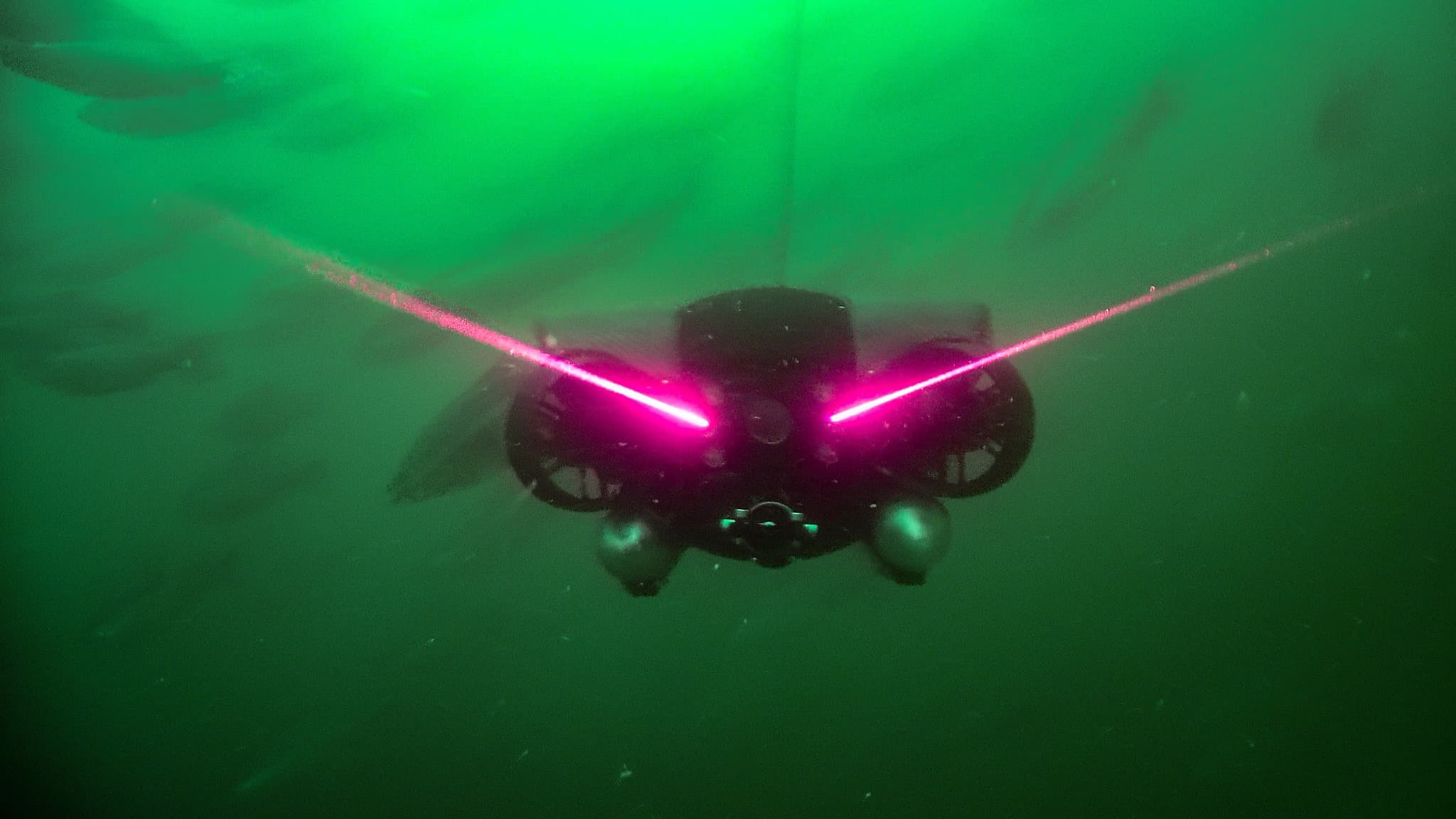

Revolving head

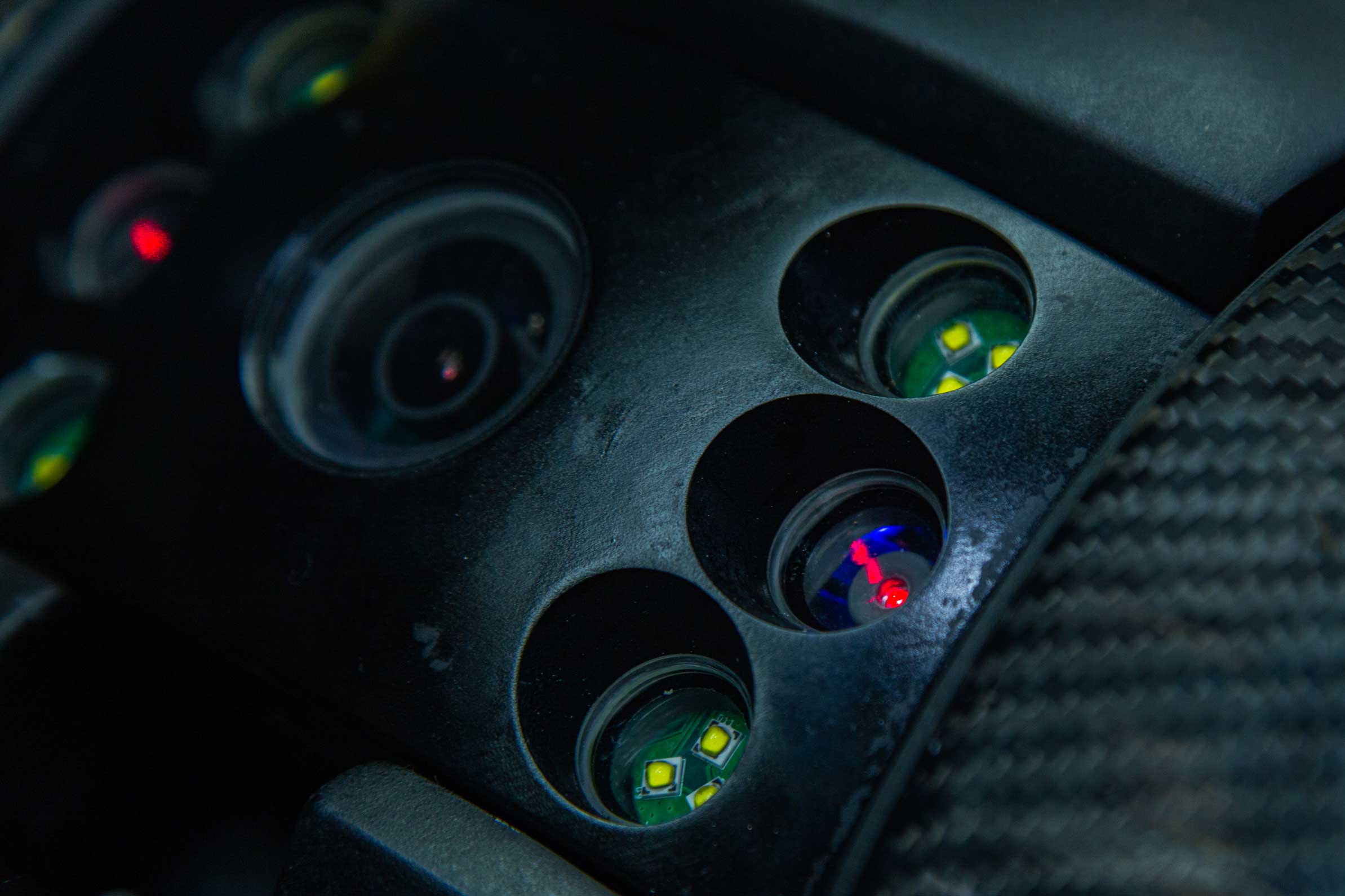

The defining feature is the 260-degree revolving head at the front of the vehicle. In the center of this head is the ultra high definition camera that you see the view from on your controller, as well as powerful LED floodlights and a laser scaler.
Adjust the angle of your camera, lights, laser scaler, imaging sonar and grabber to ensure optimal position for your application, such as sweeping an area with the imaging sonar in a search mission or looking above at the hull of a ship or to locate targets on the seafloor.
Stable six-thruster control
The ROV is propelled by six powerful thrusters, two of which are vertically mounted for precise vertical movements and depth holding, four of the thrusters are mounted horizontally and in a vectored configuration to allow for lateral movements. This configuration of thrusters is great for holding in heavier currents and for stable control when making fine adjustments while performing an inspection or survey.
Operation longevity
The REVOLUTION is powered by two Lithium Ion battery tubes on the bottom of the ROV. These battery tubes or skis can be interchanged very quickly with the included spare set to keep your operations up and running. At the front of the skis are additional LED floodlights for even better illumination for your video.

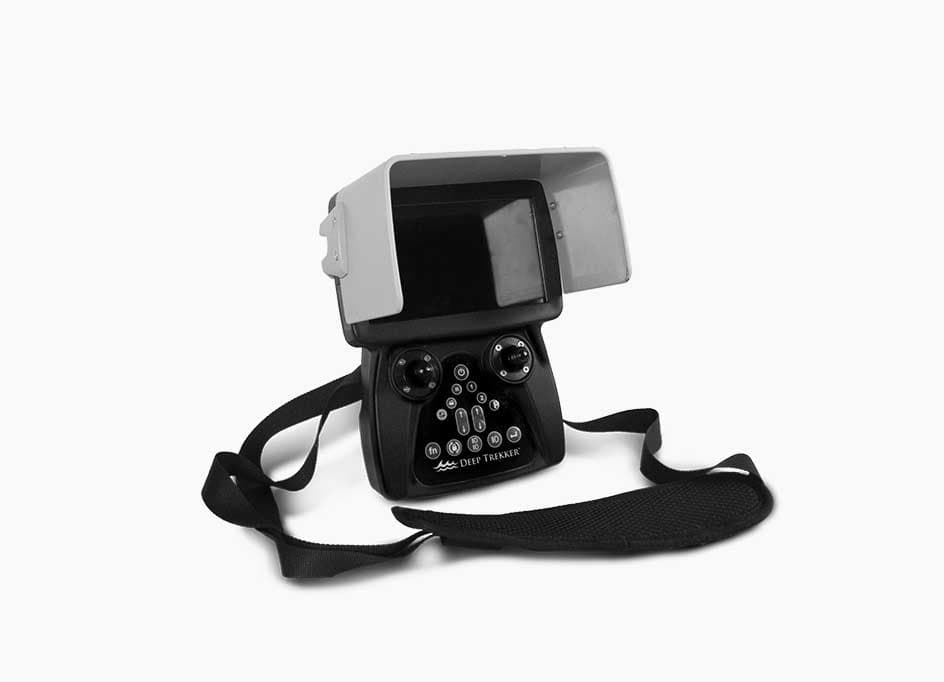

BRIDGE seamless sensor integrations

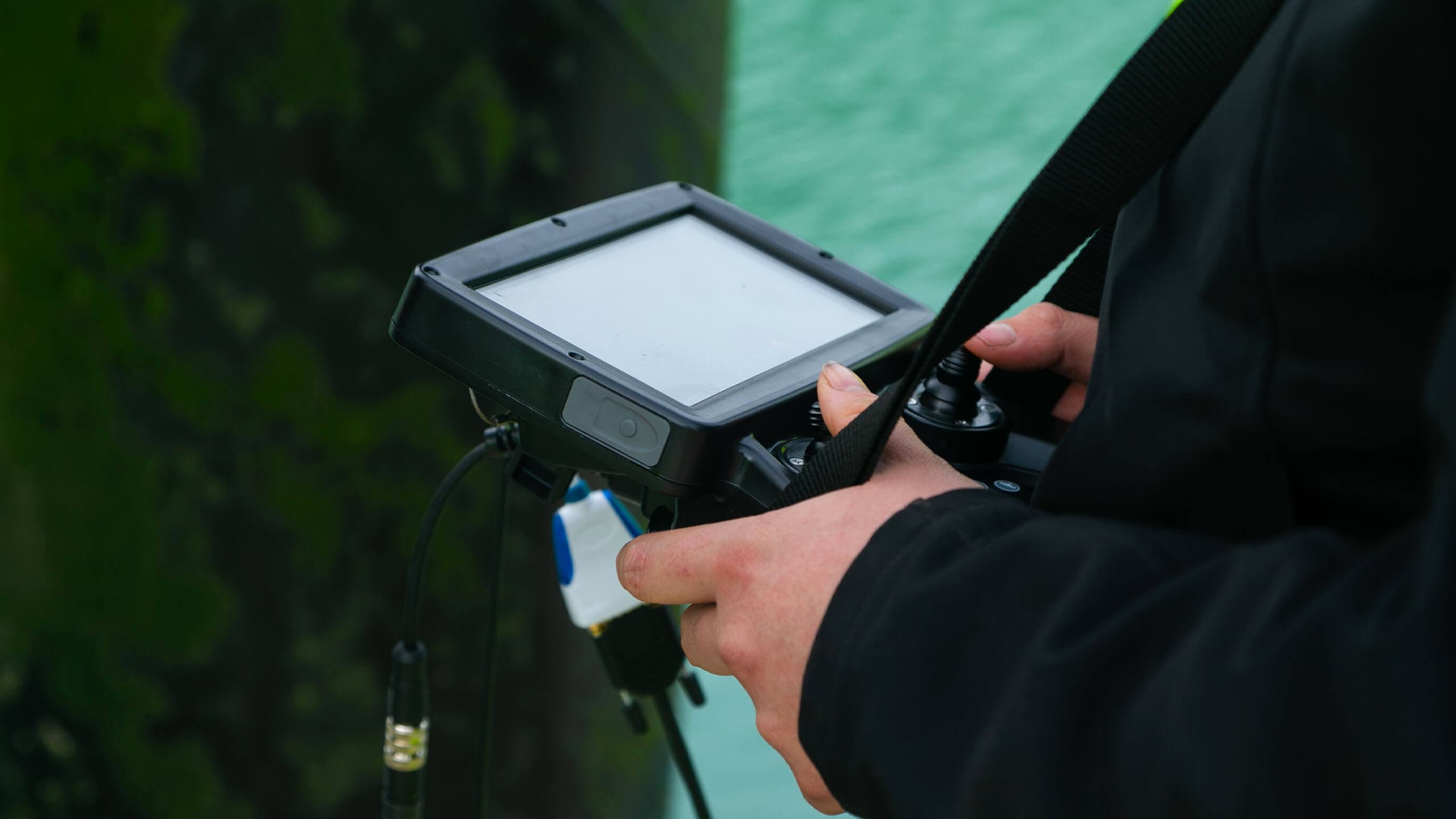

Our ROVs are controlled by our BRIDGE software, which enables you to see and record data from many different sensors all from a handheld controller. When you add positional sensors such as the USBL, you can see your position on screen via a Google map and record your position as it changes over time along with the video and your other sensor data. Imaging sonars are also integrated directly on the handheld, allowing you to see and record sonar data side by side with your position and video footage.

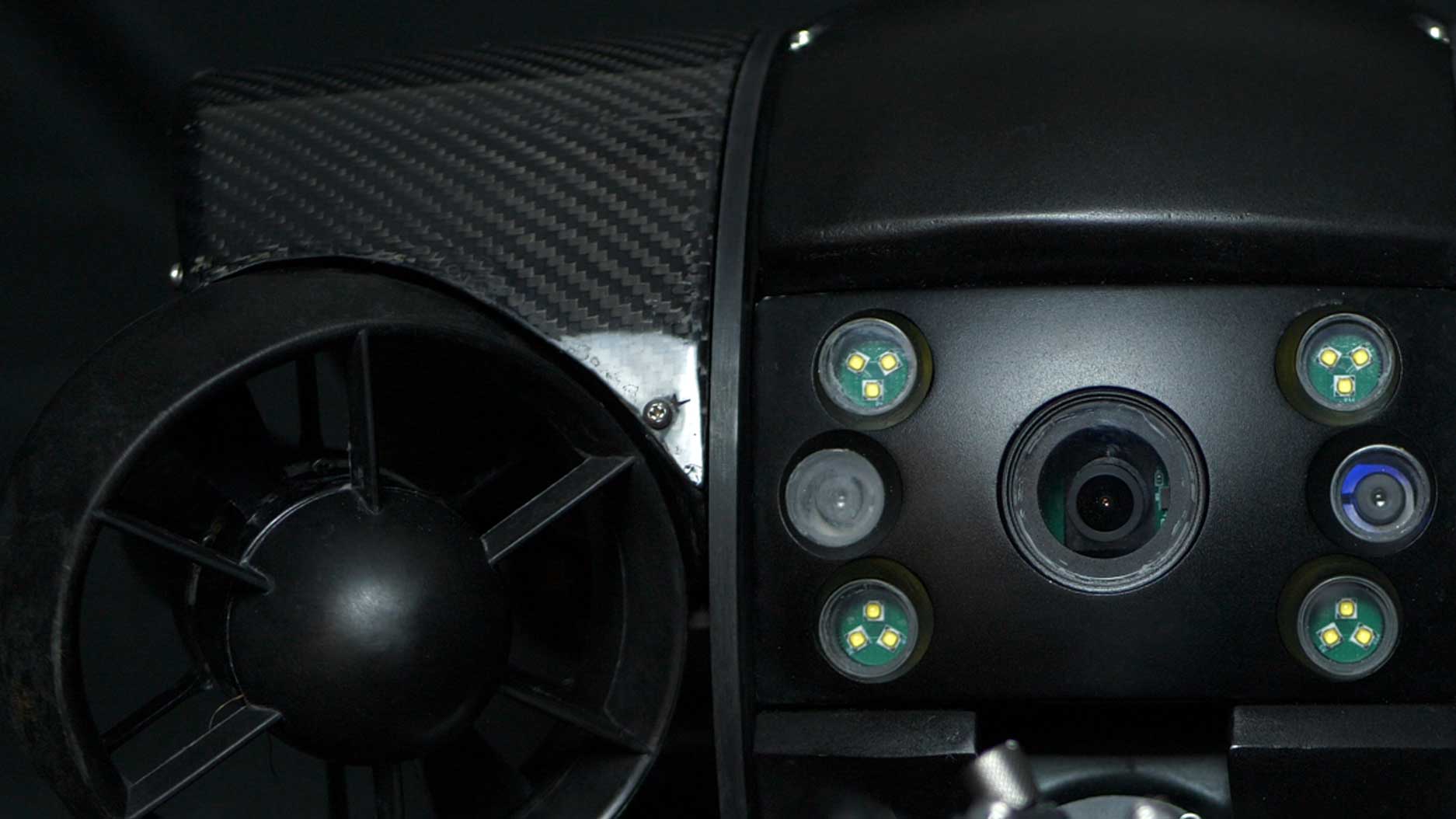

Durable construction
The carbon fibre shell, anodized aluminum and stainless steel body and sapphire lens cover make the ROV a very rugged and durable machine.

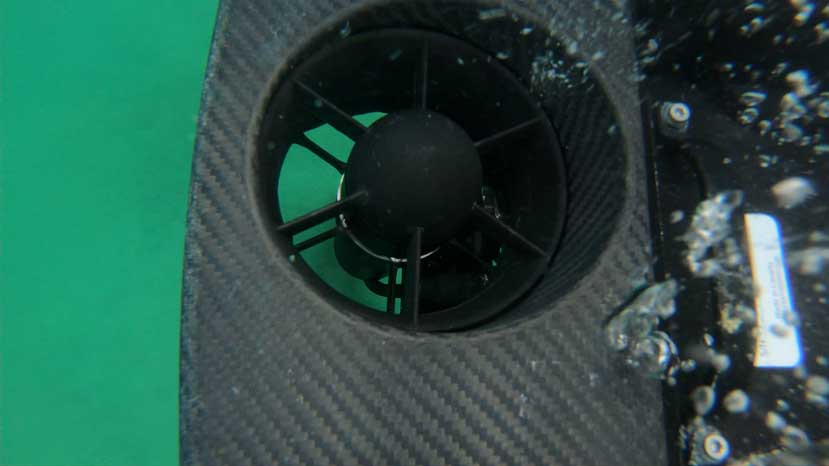

Magnetic coupling

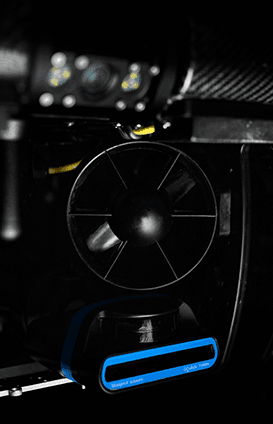

The thrusters utilize an innovative design called magnetic coupling, the propeller assembly and drive motor are connected together using magnets, meaning that the thrusters are very durable, they do not wear down over time and they do not require ongoing maintenance as other thrusters often do require oiling, greasing or regular replacement.
Direct sonar integration

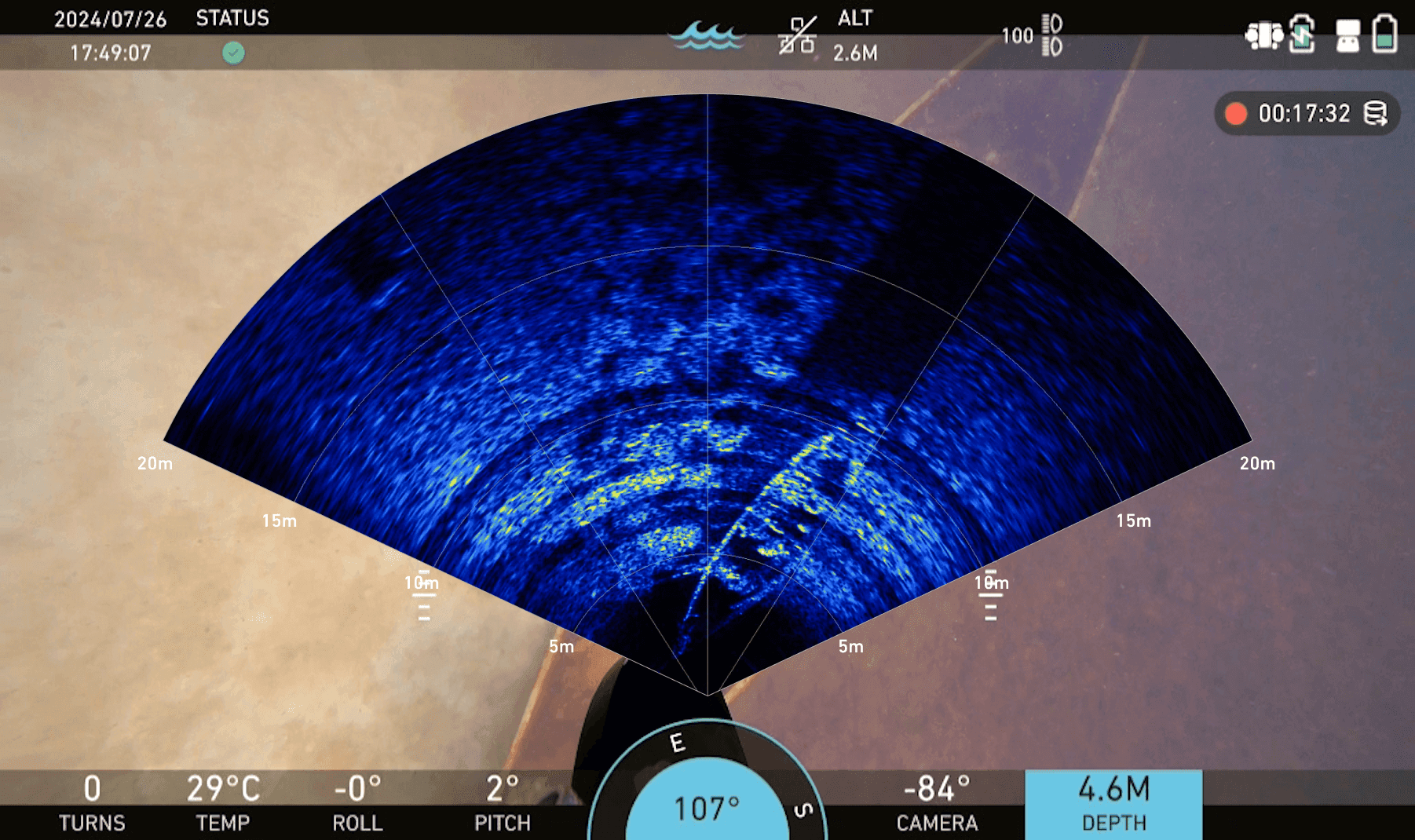

Above the camera head is an optional mount for a multibeam imaging sonar. Use the sonar to get a visual through murky water or over longer distances, monitor your sonar footage live and record it alongside your video all on your handheld controller, no extra laptops or monitors required.

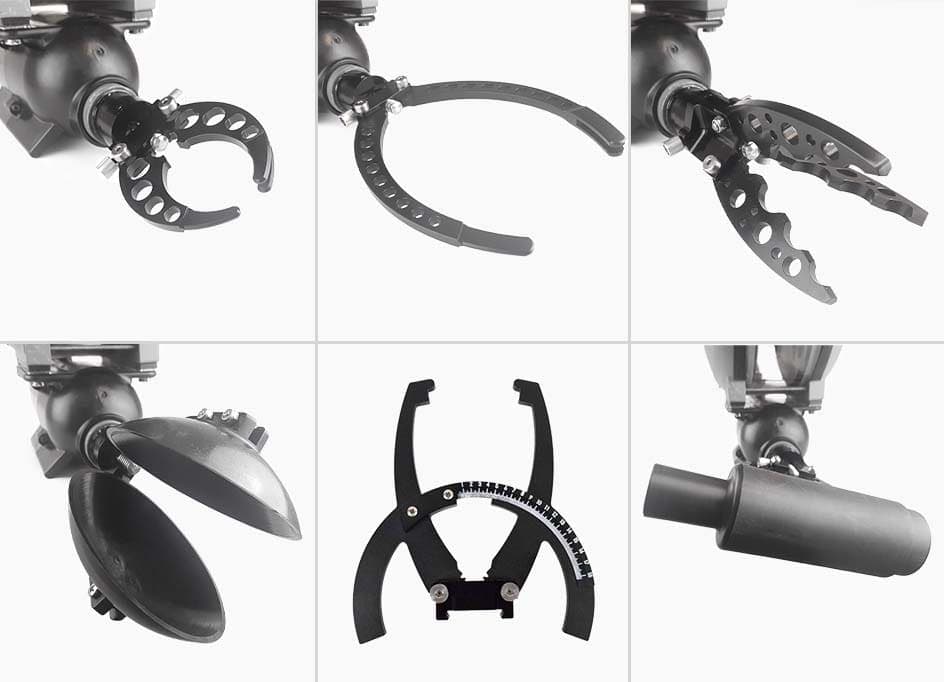

Simple field-change tools
Below the camera is a two function grabber, with interchangeable claws for sampling, measuring, recoveries or tool manipulation.
REVOLUTION ROV with 6 thrusters
260 degree rotating 4K camera and high powered LED light
300 m (1000 ft) tether on reel (6mm diameter)
SeaTrac USBL Positioning System
USBL Integration Kit (Hardware and Bridge Firmware)
Waterlinked DVL
Integrated super bright screen controller operating BRIDGE software
2 Function grabber arm
Intelligent sensor package complete with water temperature, battery levels, auto depth and auto heading
4 Camera-facing LED lights

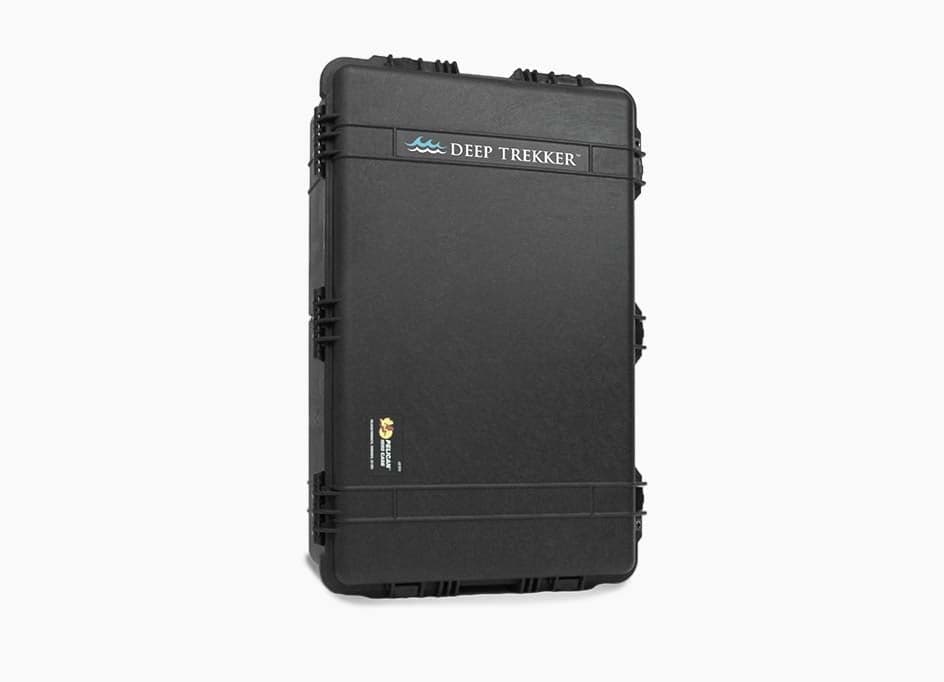

Wheeled Pelican Case
Laser scaler (10cm/3.9")
Spare batteries with LED floodlights
Microphone
Chargers and Ballast Tool Kit
Two Year Warranty
REVOLUTION ROV Specs
| Warranty | 1 Year - Parts and Labor (Optional 2-3 yrs) |
|---|---|
| Depth Rating | 305 m (1000 ft) |
| Body Material | Anodized Machined Aluminum, Carbon Fiber, Stainless Steel, & Buoyancy Foam |
| System Voltage | 19.2 VDC |
| Window Material | Sapphire & Acrylic |
| Operating Temperature | -10°C to 50°C (14°F – 122°F) |
| Tether Length Options | 300m, 500m, 850m, 2km |
4K Camera Upgrade Specs
| Video Resolution | 4K30, 1080p30 |
|---|---|
| Video Format | H.264, H.265 |
| Snapshot Resolution | 8MP |
| Snapshot Format | JPEG |
| Image Sensor | Sony, 1/2.5 |
| Features | AE, WDR, AWB, OSD Data overlay |
| Adjustable Settings | AWB, Brightness/Saturation/Contrast |
| Minimum Illumination | 0.001 Lux |
| FPS | 30 |
| White Balance | Auto/Manual |
| Gain Control | Auto |
| Horizontal FOV | 135 deg |
| Vertical FOV | 75 deg |
