PIVOT Nav
Need to tackle the toughest of jobs? The PIVOT NAV delivers innovation, stability, power, speed and control in a portable package. Utilizing innovative Bridge software fusing sensor data from USBL, DVL and IMUs, the PIVOT NAV provides users with precise real time location data and superior stability.
Error adding item to quote
Added to quote
Rotating tool platform
200 degree 4K rotating camera
Depth rating 305 m
Comprehensive sensor integrations
Field swap batteries
Integrated into BRIDGE

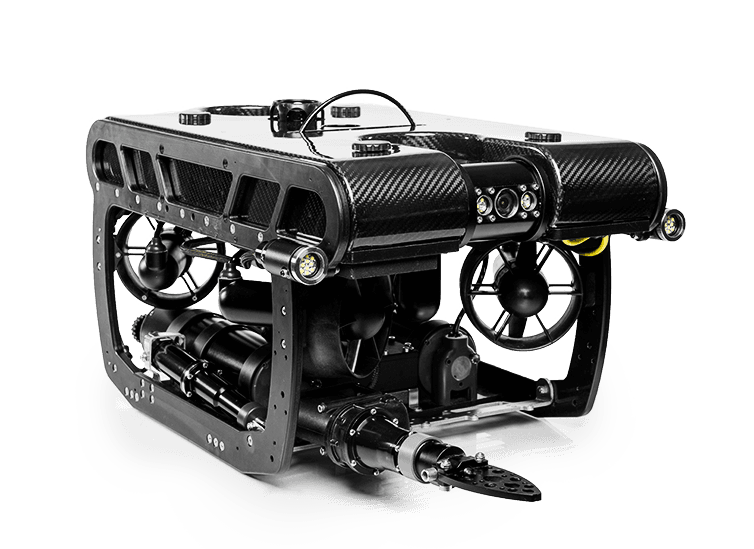

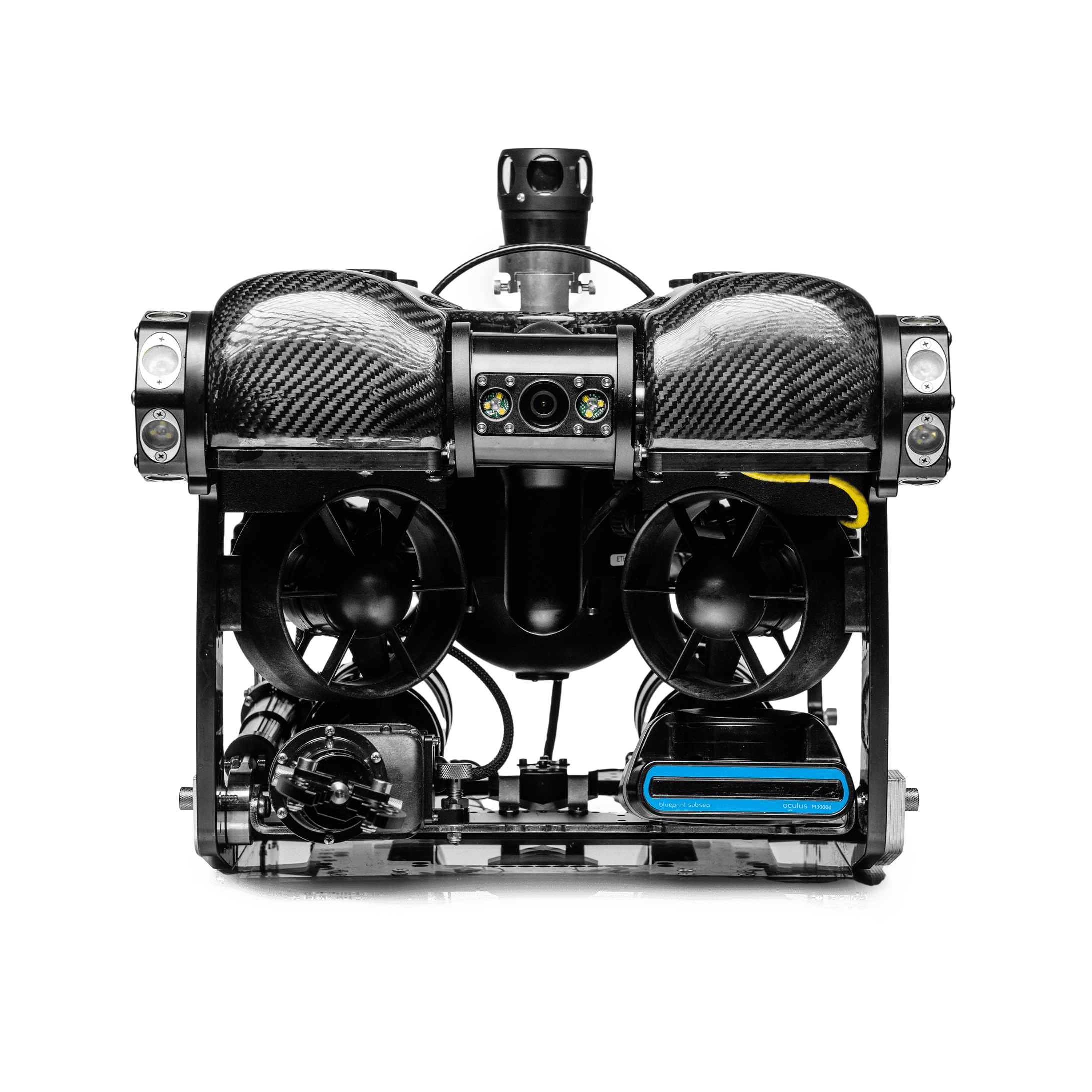

The ultimate underwater vehicle
The PIVOT NAV is in a class of its own. Stability and maneuverability meets cutting-edge location tracking to deliver our most advanced package yet. With 97 degree rotating tool positioning pilots can take advantage of flexible imaging options and convenient tool manipulation from a stable platform. The 200 degree range of motion on the HD camera allows users to complete inspections in a timely, straightforward manner.
Enhanced 4K Camera
The high quality lens upgrade and proprietary image processing algorithms through Deep Trekker’s Bridge software provide users with an optimal underwater viewing experience including a wider field of view, enhanced clarity and auto colour correction.

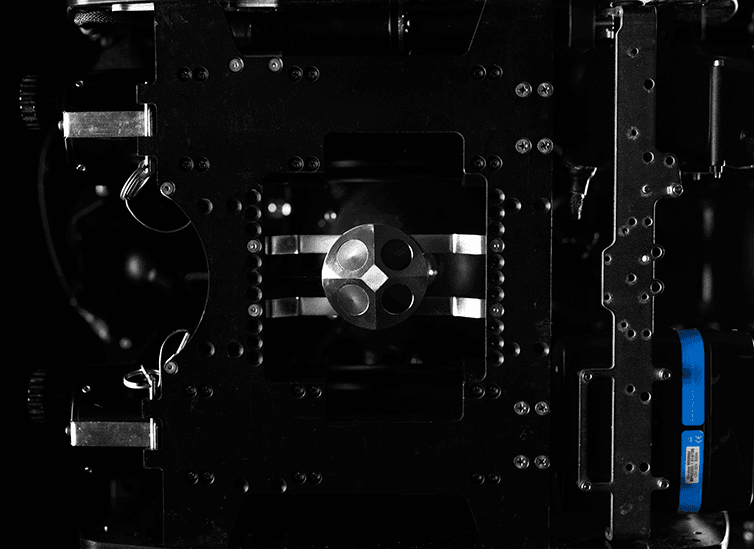

Advanced position locating and tracking
The PIVOT NAV package provides pilots with a map showing their ROV’s position on screen, allowing users to see where they are, leave a trail to show where they have been and set points of interest where they want to return to. This is especially useful for applications in open, murky water or when there is significant current.
Rotating tool platform
The independently revolving tool platform provides pilots with numerous options for imaging and tool manipulation. Take advantage of the flexibility of the vehicle to get the job done conveniently and efficiently.

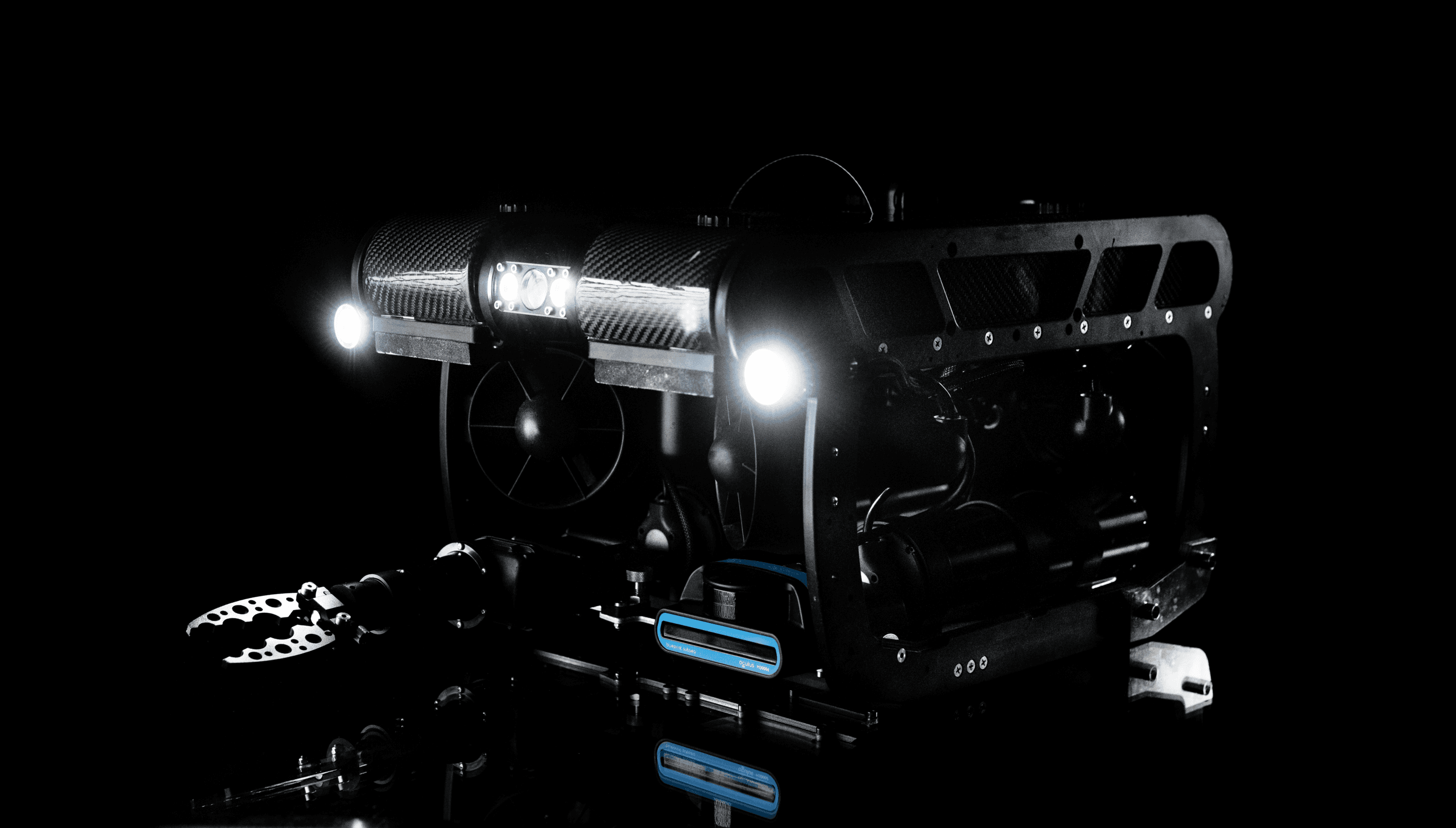

Built to last
Designed to provide years of service the PIVOT is made for tough jobs. Built with tough materials like carbon fiber and aluminum, paired with magnetically coupled thrusters, stainless steel components and sapphire lens cover ensures durability in the harshest of conditions.

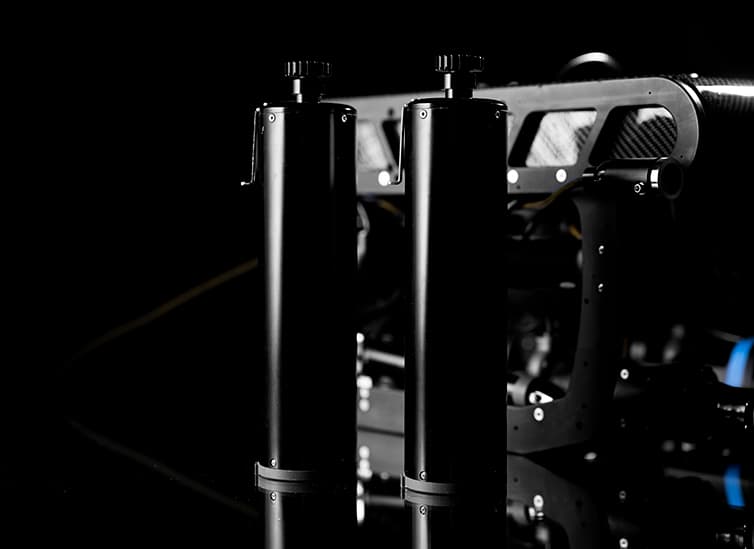

Stability and power
Equipped with 6 strong thrusters powered by lithium ion batteries, the PIVOT provides users with stability, power, speed and control in a portable package. Lateral movement and 220 degree range of motion on the high definition camera, allows users to complete inspections in a timely, straightforward manner.

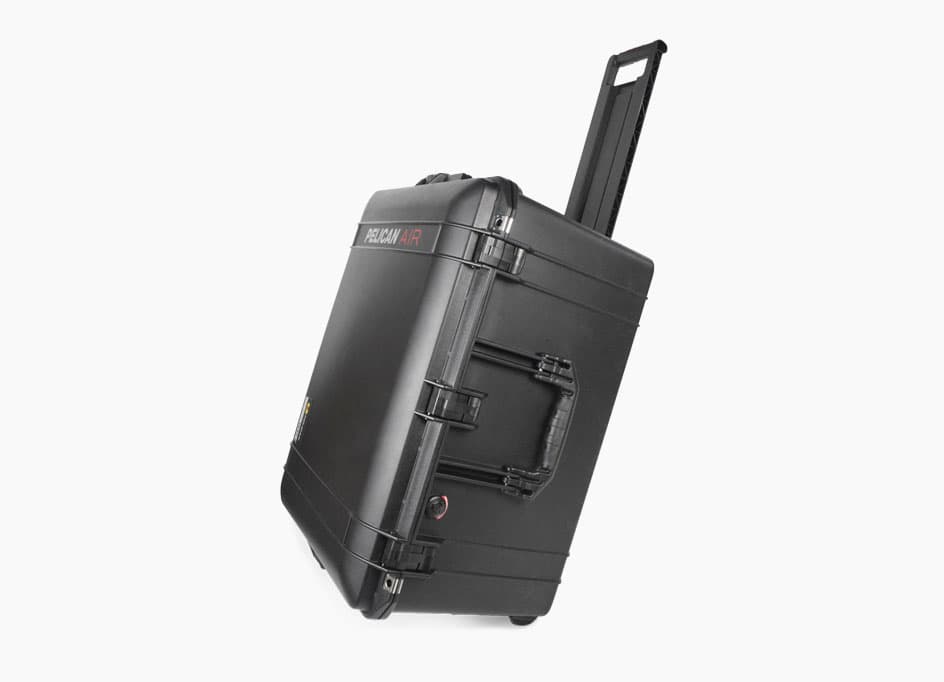

Portability
Under 37 pounds and contained within 2 Pelican cases, the PIVOT is easily portable. With battery tubes under 100whr the PIVOT is certified for both passenger and cargo airplanes for easy and convenient travel. Ease of portability means that one vehicle can be used for numerous jobs at several locations.

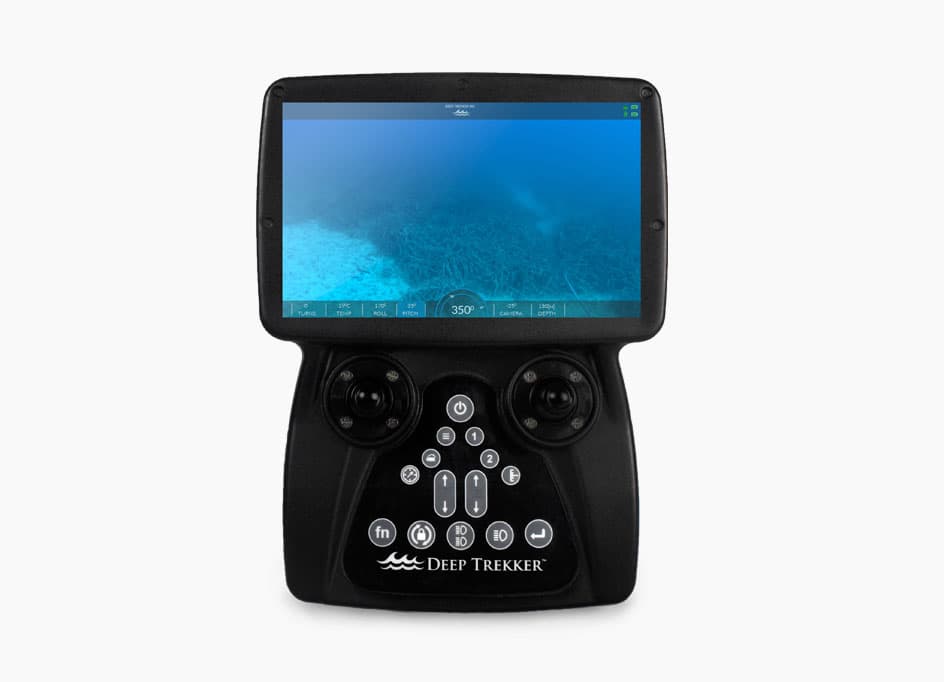

Straightforward operations
With the handheld 7” LCD controller and straightforward operations, the PIVOT is easy to use allowing operators to be trained quickly. Lateral movement simplifies navigation during remote inspection work. Finally the modular design makes adding tools convenient - even in the field.
PIVOT ROV
300 m (1000 ft) of Tether
7-inch, sunlight-readable, Controller
Rotating tool platform
Swappable Batteries
Comprehensive sensor integrations

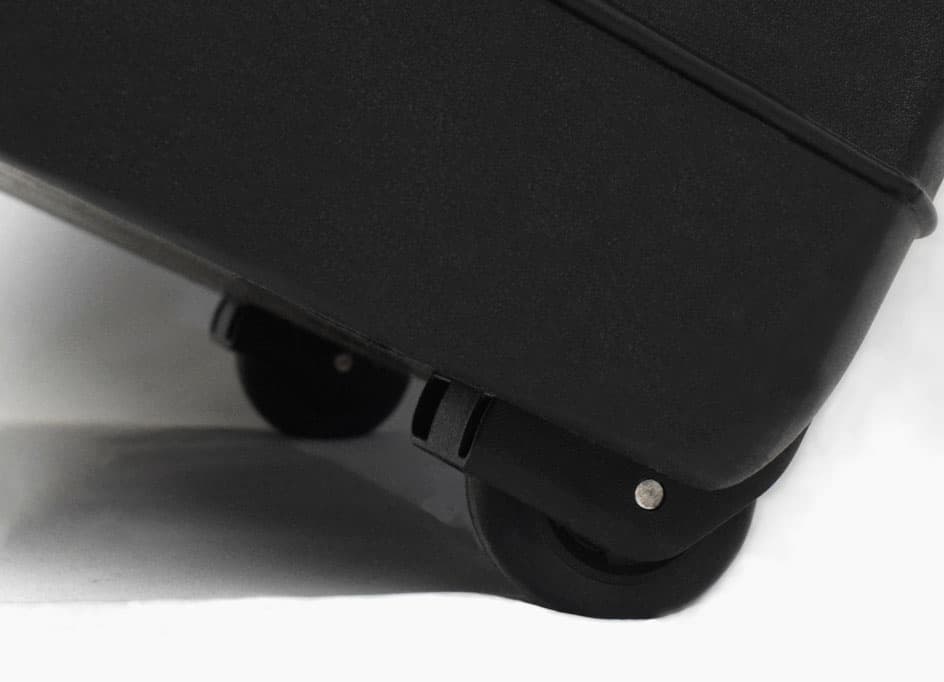

Wheeled Pelican Case
Microphone
Additional Lighting
2 Function grabber arm
1 Year Warranty
Online training
Precise USBL position

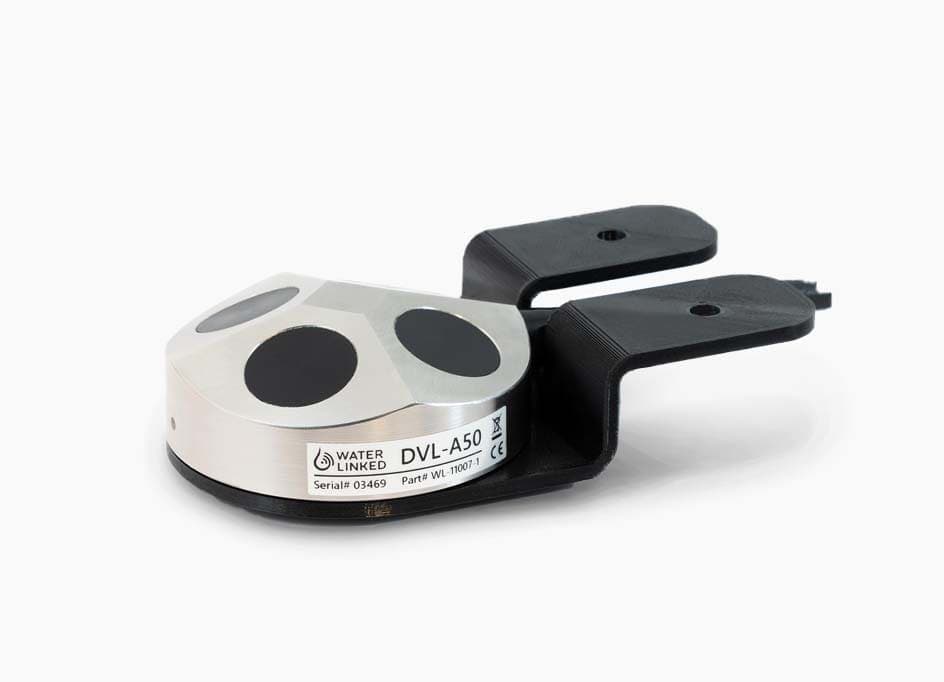

Waterlinked DVL
Operator manual
Chargers
200 Degree Rotating 4K camera head with LED Floodlights
PIVOT General Specs
| Width | 360 mm (14.2”) |
|---|---|
| Height | 310 mm (12.2”) |
| Length | 576 mm (22.7.0”) |
| Warranty | 1 Year – Parts and Labor (optional 2-3 yrs) |
| Depth Rating | 305 m (1000 ft) |
| Body Material | Anodized Machined Aluminum, Carbon Fiber, & Stainless Steel, Buoyancy Foam |
| Case (option) | Custom Pelican Air 1650 & 1560, Handle and Wheels |
| Operating Temp | -10°C to 50°C (14°F – 122°F) |
| Weight (in air) | 17 kg (37.5 lb) |
| Window Material | Sapphire & Acrylic |
| Drives/Thrusters | Magnetically Coupled/Sealed |
PIVOT Electrical Specs
| System Voltage | 19.2 VDC |
|---|---|
| Thruster Control | 6x Independent Control, Infinitely Variable, 100% Reversible |
ROV Tether
| Tether Length | 50 m (Varies by package or Can Customize in Quote) |
|---|---|
| Tether Weight | Neutrally Buoyant in Water |
| Tether Diameter | 4.5 mm (0.18'') - 6.5 mm (0.26'') |
| Tether Construction | Polyurethane outer jacket with embedded light weight synthetic fibers |
| Maximum Working Strength | 25 kg (55 lbs) |
| Minimum Breaking Strength | 90 kg (200 lbs) |
| Tether Length Options | 300m, 500m, 850m, 2km |
ROV Lights & Camera
| Video | Enhanced 4K Camera |
|---|---|
| Lights | High Efficiency LED, Fully Dimmable, 1000 Lumens Tracking with Camera, Optional: 1000-4400 Lumens Add-ons |
| Picture | JPG 8mp |
Enhanced 4K Camera Specs
| Video Resolution | 4K30, 1080p30 |
|---|---|
| Video Format | H.264, H.265 |
| Snapshot Resolution | 8MP |
| Snapshot Format | JPEG |
| Image Sensor | Sony, (1/2.5”) |
| Lens | 2.7mm F2.9 |
| Features | AE, WDR, AWB, OSD Data overlay |
| Adjustable Settings | AWB, Brightness / Saturation / Contrast |
| Minimum Illumination | 0.001 Lux |
The ultimate underwater vehicle
The PIVOT NAV is in a class of its own. Stability and maneuverability meets cutting-edge location tracking to deliver our most advanced package yet. With 97 degree rotating tool positioning pilots can take advantage of flexible imaging options and convenient tool manipulation from a stable platform. The 200 degree range of motion on the HD camera allows users to complete inspections in a timely, straightforward manner.
Enhanced 4K Camera
The high quality lens upgrade and proprietary image processing algorithms through Deep Trekker’s Bridge software provide users with an optimal underwater viewing experience including a wider field of view, enhanced clarity and auto colour correction.
Advanced position locating and tracking
The PIVOT NAV package provides pilots with a map showing their ROV’s position on screen, allowing users to see where they are, leave a trail to show where they have been and set points of interest where they want to return to. This is especially useful for applications in open, murky water or when there is significant current.
Rotating tool platform
The independently revolving tool platform provides pilots with numerous options for imaging and tool manipulation. Take advantage of the flexibility of the vehicle to get the job done conveniently and efficiently.
Built to last
Designed to provide years of service the PIVOT is made for tough jobs. Built with tough materials like carbon fiber and aluminum, paired with magnetically coupled thrusters, stainless steel components and sapphire lens cover ensures durability in the harshest of conditions.
Stability and power
Equipped with 6 strong thrusters powered by lithium ion batteries, the PIVOT provides users with stability, power, speed and control in a portable package. Lateral movement and 220 degree range of motion on the high definition camera, allows users to complete inspections in a timely, straightforward manner.
Portability
Under 37 pounds and contained within 2 Pelican cases, the PIVOT is easily portable. With battery tubes under 100whr the PIVOT is certified for both passenger and cargo airplanes for easy and convenient travel. Ease of portability means that one vehicle can be used for numerous jobs at several locations.
Straightforward operations
With the handheld 7” LCD controller and straightforward operations, the PIVOT is easy to use allowing operators to be trained quickly. Lateral movement simplifies navigation during remote inspection work. Finally the modular design makes adding tools convenient - even in the field.
PIVOT ROV
300 m (1000 ft) of Tether
7-inch, sunlight-readable, Controller
Rotating tool platform
Swappable Batteries
Comprehensive sensor integrations
Wheeled Pelican Case
Microphone
Additional Lighting
2 Function grabber arm
1 Year Warranty
Online training
Precise USBL position
Waterlinked DVL
Operator manual
Chargers
200 Degree Rotating 4K camera head with LED Floodlights
PIVOT General Specs
| Width | 360 mm (14.2”) |
|---|---|
| Height | 310 mm (12.2”) |
| Length | 576 mm (22.7.0”) |
| Warranty | 1 Year – Parts and Labor (optional 2-3 yrs) |
| Depth Rating | 305 m (1000 ft) |
| Body Material | Anodized Machined Aluminum, Carbon Fiber, & Stainless Steel, Buoyancy Foam |
| Case (option) | Custom Pelican Air 1650 & 1560, Handle and Wheels |
| Operating Temp | -10°C to 50°C (14°F – 122°F) |
| Weight (in air) | 17 kg (37.5 lb) |
| Window Material | Sapphire & Acrylic |
| Drives/Thrusters | Magnetically Coupled/Sealed |
PIVOT Electrical Specs
| System Voltage | 19.2 VDC |
|---|---|
| Thruster Control | 6x Independent Control, Infinitely Variable, 100% Reversible |
ROV Tether
| Tether Length | 50 m (Varies by package or Can Customize in Quote) |
|---|---|
| Tether Weight | Neutrally Buoyant in Water |
| Tether Diameter | 4.5 mm (0.18'') - 6.5 mm (0.26'') |
| Tether Construction | Polyurethane outer jacket with embedded light weight synthetic fibers |
| Maximum Working Strength | 25 kg (55 lbs) |
| Minimum Breaking Strength | 90 kg (200 lbs) |
| Tether Length Options | 300m, 500m, 850m, 2km |
ROV Lights & Camera
| Video | Enhanced 4K Camera |
|---|---|
| Lights | High Efficiency LED, Fully Dimmable, 1000 Lumens Tracking with Camera, Optional: 1000-4400 Lumens Add-ons |
| Picture | JPG 8mp |
Enhanced 4K Camera Specs
| Video Resolution | 4K30, 1080p30 |
|---|---|
| Video Format | H.264, H.265 |
| Snapshot Resolution | 8MP |
| Snapshot Format | JPEG |
| Image Sensor | Sony, (1/2.5”) |
| Lens | 2.7mm F2.9 |
| Features | AE, WDR, AWB, OSD Data overlay |
| Adjustable Settings | AWB, Brightness / Saturation / Contrast |
| Minimum Illumination | 0.001 Lux |
